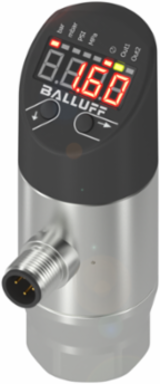

Balluff BSP B600-EV009-P00S2B-S4 Pressure Sensor with Display, 0-600 Bar, IP67, Stainless Steel
- MPN: BSP B600-EV009-P00S2B-S4
- PPN: BAL-BSP00YK
CAD
$603.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensor with Display, 0-600 Bar, IP67, Stainless Steel
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0...600 bar |
|---|---|
| Burst Pressure | 1570 bar |
| Operating Voltage | 18...30 VDC |
| Analog Output | Voltage/current selectable 4 20 mA/0 10 V |
| Process Connection | G 1/4" (DIN 3852) |
| Housing Material | 1.4301 stainless steel; PE, High-density polyethylene |
| Media Temperature | -40...125 C |
| IP Rating | IP67, when threaded in |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
| Overload Pressure | 1000 bar |
|---|---|
| Accuracy | 0.5% FSO BFSL |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Connection | Connector, M12x1-Male, 4-pin |
| Process Connection Material | 1.4301 stainless steel |
| Gasket Material | Fluoroelastomer |
| Ambient Temperature | -40...85 C |
| Interface | IO-Link 1.1 |
| Country of Origin | Germany |
