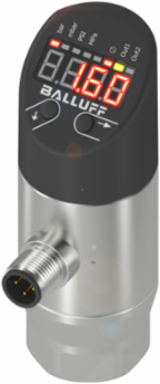

Balluff BSP B250-EV009-P00S2B-S4 Pressure sensors with display - BSP00YC
- MPN: BSP B250-EV009-P00S2B-S4
- PPN: BAL-BSP00YC
CAD
$566.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure sensors with display - BSP00YC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|---|
| Accuracy | ±0.5 % FSO BFSL |
| Burst pressure | 750 bar |
| Interface | IO-Link 1.1 |
| Switching output | 2x PNP/NPN NO/NC switchable |
| Process connection | G 1/4" (DIN 3852) |
| Gasket, material | Fluoroelastomer |
| Media temperature | -40...125 °C |
| IP rating | IP67, when threaded in |
| Measuring range | 0...250 bar |
|---|---|
| Overload pressure | 400 bar |
| Operating voltage Ub | 18...30 VDC |
| Analog output | Analog, voltage/Analog, current selectable 4…20 mA/0…10 V |
| Connection | Connector, M12x1-Male, 4-pin |
| Process connection material | 1.4301 stainless steel |
| Housing material | 1.4301 stainless steel; PE, High-density polyethylene |
| Ambient temperature | -40...85 °C |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
