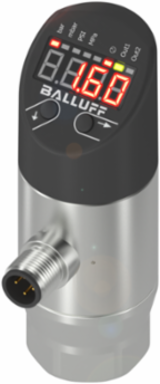

Balluff BSP B100-EV009-P00S2B-S4 Pressure Sensor - 0-100 Bar, IP67, IO-Link 1.1, M12x1 4-Pin Connection
- MPN: BSP B100-EV009-P00S2B-S4
- PPN: BAL-BSP00Y8
CAD
$566.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensor - 0-100 Bar, IP67, IO-Link 1.1, M12x1 4-Pin Connection
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0...100 bar |
|---|---|
| Burst Pressure | 300 bar |
| Media Temperature | -40...125 B0C |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Connection Type | Connector, M12x1 Male, 4-pin |
| Housing Material | 1.4301 stainless steel; PE, High-density polyethylene |
| Process Connection Material | 1.4301 stainless steel |
| Communication Protocol | IO-Link 1.1 |
| Country of Origin | Germany |
| Overload Pressure | 200 bar |
|---|---|
| Operating Voltage | 18...30 VDC |
| Ambient Temperature | -40...85 B0C |
| Analog Output | Analog voltage/current selectable 4...20 mA / 0...10 V |
| Process Connection | G 1/4" (DIN 3852) |
| Gasket Material | Fluoroelastomer |
| IP Rating | IP67, when threaded in |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
