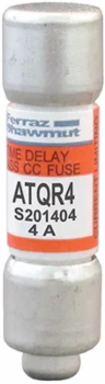

Mersen ATQR4 Amp-Trap 2000® Time-Delay Fuse 600V 4A Class CC, 0.41 Inch Diameter
- MPN: ATQR4
- UPC: 782001906566
- PPN: FER-ATQR4
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- The Mersen ATQR4 is a 4-Amp Class CC time-delay fuse specifically designed for the high-inrush currents common in control transformers and solenoids. It provides a minimum 12-second time delay at 200% of its rating, preventing the "nuisance tripping" that occurs when standard fuses can't handle the initial surge of power during equipment startup.
- As a Class CC fuse, the ATQR4 is highly current-limiting. In the event of a short circuit, it reacts in less than half a cycle to "choke" the fault before it can reach its full destructive peak. By drastically reducing the "let-through" energy (I^2t), it shields downstream components from mechanical and thermal stress, keeping your Canadian industrial panels safe and operational.
- Despite its small size, this fuse boasts a massive 200,000 Amp (200kA) interrupting capacity at 600V AC. This allows it to safely extinguish extreme electrical arcs in high-capacity facilities, providing a robust layer of protection that far exceeds the requirements of most standard branch circuits.
- The ATQR series features a unique physical rejection tip on one end cap. When used with a Class CC fuse holder, this design prevents the accidental insertion of non-current-limiting "Midget" fuses. This "fool-proof" safety feature ensures that your system always maintains its engineered level of protection and remains fully compliant with the Canadian Electrical Code (CEC).
Documentation & Downloads
Specifications
Additional
- Amperage
- 4 A
- Voltage DC
- 300 V
- Fuse Class
- Class CC
- Length
- 1.5 in
- Weight
- 0.017 lb
- Connection/Terminal Material
- Tin-Plated Copper
- Mounting
- Clip
- Frequency
- 50/60 Hz
- Label Color
- Orange
Voltage AC600 V
Interrupting Rating200 kA AC, 100 kA DC
Speed/CharacteristicTime Delay
Diameter0.41 in
Connection/Terminal TypeFerrule
Body/Insulating MaterialGMG
AC or DCAC/DC
Current LimitingYes
