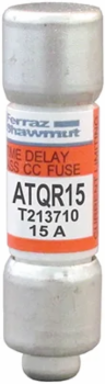

Mersen ATQR15 Fuse Amp-Trap 2000® 600V 15A Class CC Time-Delay with 0.41 Inch Diameter
- MPN: ATQR15
- UPC: 782001904685
- PPN: FER-ATQR15
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- The Mersen ATQR15 is a 15-Amp, 600V AC Class CC fuse from the Amp-Trap 2000® family. Unlike the fast-acting ATMR series, the ATQR is a time-delay (slow-blow) fuse. It is specifically designed to handle the massive "magnetizing inrush" currents produced when control transformers or solenoids are first energized, preventing the fuse from blowing unnecessarily during a normal start-up.
- As a Class CC fuse, the ATQR15 features a unique rejection tip on its end cap. This physical feature ensures it can only be inserted into a Class CC fuse holder (like the Mersen USCC series). This is a vital safety requirement in the Canadian Electrical Code (CEC), as it prevents a high-capacity branch circuit fuse from being replaced by a standard midget fuse that lacks the same interrupting rating.
- Despite its small 13/32" times 1-1/2" size, the ATQR15 has a massive 200kA AC interrupting rating. This allows it to safely clear catastrophic short circuits without rupturing. In Canadian industrial facilities where equipment is often located near large utility transformers, this high rating is essential for maintaining a safe electrical environment.
- The ATQR15 is a current-limiting fuse, meaning it reacts so quickly to a fault that it stops the current from reaching its full destructive peak. This "low peak let-thru" characteristic protects downstream components—like small relays or contactors—from being vaporized during a short circuit, potentially allowing for "Type 2" (no damage) coordination in your control panel.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Fuse Class
- Class CC
- Interrupting Rating AC
- 200 kA
- AC or DC
- AC/DC
- Length
- 1.5 in
- Weight
- 0.017 lb
- Connection Terminal Type
- Ferrule
- ROHS Compliant
- Yes
- UL Listed
- Yes
Amperage15 A
Time DelayYes
Frequency50/60 Hz
MountingClip
Diameter0.25 in end diameter
Connection Terminal MaterialTin-Plated Copper
MaterialGMG body (Fiberglass body with high-grade silica filler)
CSA CertifiedYes
