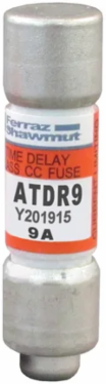

Mersen ATDR9 Fuse Amp-Trap 2000® 600V 9A Time-Delay Class CC, 1.5 Inch Length, 0.41 Inch Diameter
- MPN: ATDR9
- UPC: 782001908607
- PPN: FER-ATDR9
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- Measuring just 13/32" x 1-1/2", this highly compact Class CC fuse safely mounts into space-saving rejection-style holders, preventing the dangerous accidental insertion of lower-rated standard midget fuses. This specialized footprint drastically reduces the overall size requirements of your motor control centers and industrial enclosures, allowing engineers to design highly efficient, high-density 600V electrical layouts without sacrificing safety.
- Engineered with industry-leading Amp-Trap 2000® time-delay capabilities, this 9-amp fuse easily handles the harmless, temporary inrush currents typical of small motors, relays, and transformers. By safely absorbing these everyday electrical spikes without tripping, it eliminates costly machine downtime and frustrating maintenance calls while still delivering absolute protection against sustained, destructive overloads.
- Boasting an exceptional 200,000 Amp Short Circuit Current Rating (SCCR) at 600V AC, this highly efficient current-limiting fuse rapidly clears extreme electrical faults before they can cause irreversible thermal or magnetic damage to downstream equipment. This rapid response drastically minimizes arc flash hazards and isolates short circuits, protecting your valuable switchgear components and ensuring a much safer environment for facility technicians.
- Specifically rated for 9 Amps at up to 600V AC (and 300V DC), this ATDR branch circuit fuse provides precise, reliable overcurrent protection for specialized industrial applications, including commercial HVAC, automated manufacturing machinery, and heavy-duty lighting. Fully UL Listed and CSA Certified, it guarantees your critical electrical infrastructure remains strictly code-compliant and seamlessly passes local safety inspections.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Fuse Type
- Time Delay
- Interrupting Rating AC
- 200 kA
- Length
- 1.5 in
- Diameter
- 0.41 in
- Connection Material
- Tin-Plated Copper
- Speed/Characteristic
- Time Delay
- Mounting
- Clip
Amperage9 A
Fuse ClassClass CC
Interrupting Rating DC100 kA
Weight0.017 lb
Connection TypeFerrule
Body MaterialGMG
Frequency50/60 Hz
AC or DCAC/DC
