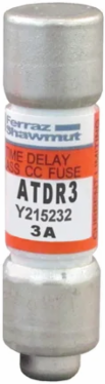

Mersen ATDR3 Amp-Trap 2000® 600V 3A Time-Delay Class CC Fuse, 1.5 Inch Length, 0.41 Inch Diameter
- MPN: ATDR3
- UPC: 782001900960
- PPN: FER-ATDR3
CAD
$9.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- The ATDR3 is a 3-Amp, 600V AC/300V DC Class CC time-delay fuse from Mersen’s Amp-Trap 2000® series. It features a specialized rejection tip—a physical protrusion on the end—that prevents the installation of non-rejection or lower-rated midget fuses into critical branch circuits, ensuring your system remains protected by the exact safety specifications required.
- Specifically engineered for small motor and control transformer protection, the ATDR3 provides superior time-delay characteristics. It is designed to "ride through" the high initial current surges of motor startups without nuisance tripping, while still offering ultra-fast, current-limiting protection during actual fault conditions.
- This fuse provides IEC Type 2 "no damage" protection, meaning it can stop a massive electrical fault in less than half a cycle ($<0.008$ seconds). With a 200,000 Amp RMS interrupting rating, it drastically limits the "let-through" energy ($I^2t$) during a short circuit, preventing catastrophic damage to sensitive downstream components like contactors and solid-state relays.
- The ATDR3 is constructed with a high-grade fiberglass body and silver-plated copper contact caps, ensuring excellent dimensional stability and electrical conductivity. This robust build prevents the fuse from becoming brittle or losing calibration when housed in compact, high-temperature control panels or HVAC units.
- The Mersen ATDR3 is UL Listed to Standard 248-4 (Class CC) and CSA Certified to Standard C22.2. Its high interrupting capacity and exceptional cycling ability make it the primary choice for meeting NEC® and CEC® requirements for branch circuit protection in industrial machinery, automation cabinets, and commercial lighting systems.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Fuse Type
- Time Delay
- Diameter
- 0.41 in
- Mounting
- Clip
- Connection Material
- Tin-Plated Copper
- Frequency
- 50/60 Hz
Amperage3 A
Fuse ClassClass CC
Length1.5 in
Weight0.017 lb
Connection TypeFerrule
Body MaterialGMG
