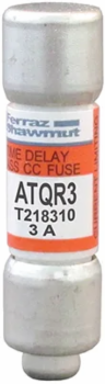

Mersen ATQR3 Fuse Amp-Trap 2000® Time-Delay Class CC 600V 3A, 1.5 Inch Length, Clip Mounting
- MPN: ATQR3
- UPC: 782001906535
- PPN: FER-ATQR3
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Designed specifically as a Class CC rejection-style fuse, the ATQR3 features a unique physical rejection tip that prevents the installation of less-capable fuses into your control circuits. This ensures your motor control centers and branch circuits maintain the high-performance current-limiting protection required by modern electrical safety standards, preventing dangerous equipment mismatches.
- Engineered with Amp-Trap® 2000 time-delay characteristics, this 3-amp fuse is optimized to withstand the intense, momentary "inrush" current of small control transformers and inductive loads. By absorbing these brief surges without blowing, it eliminates the frustration of nuisance trips during startup while providing instantaneous response to actual short circuits.
- With a massive 200,000 Amp interrupting rating (AIC) at 600V AC, this fuse provides a critical "safety net" for your most sensitive industrial electronics. It is designed to rapidly clear catastrophic faults, significantly reducing the risk of arc flash incidents and thermal damage to expensive downstream components like PLCs and contactors.
- As a highly current-limiting device, the ATQR3 reacts in less than half a cycle to "choke" the energy of a fault before it reaches its peak. This precise protection prevents the warping of busbars and the melting of delicate wiring, ensuring your machinery can be quickly returned to service after a fault is resolved rather than requiring a total system overhaul.
- Fully UL Listed to Standard 248-4 and CSA Certified, this component meets the stringent requirements of the National Electrical Code (NEC) for branch circuit protection. Using these certified fuses ensures your industrial control panels pass rigorous inspections and provides documented reliability for facility insurance and safety audits.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Time Delay
- Yes
- Weight
- 0.017 lb
- Body Material
- GMG fiberglass
- Connection Type
- Ferrule
- Approvals
- UL Listed, CSA Certified
Amperage3 A
Fuse ClassClass CC
Length1.5 in
Mounting TypeClip
Connection MaterialTin-Plated Copper
Frequency50/60 Hz
