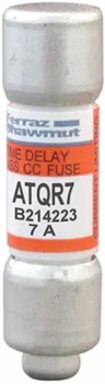

Mersen ATQR7 Fuse Amp-Trap 2000 600V 7A Class CC Time-Delay, 0.41 Inch Diameter
- MPN: ATQR7
- UPC: 782001906627
- PPN: FER-ATQR7
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- Engineered with advanced dual-element time-delay characteristics specifically designed to withstand the temporary, high-inrush currents of control transformers, solenoids, and inductive loads. It intelligently filters out safe, momentary surges up to its 7A rating, eliminating frustrating nuisance tripping and preventing costly, unplanned industrial equipment downtime.
- Featuring Mersen's proprietary Amp-Trap 2000 technology, this current-limiting fuse provides a massive 200kA interrupting rating (AIC) at 600VAC to rapidly suppress severe electrical faults. By minimizing peak let-thru current, it safeguards sensitive branch circuits and delicate automation systems from thermal and magnetic destruction before damage can occur.
- This industrial-grade fuse features a standard 13/32" x 1-1/2" (10mm x 38mm) cylindrical body with ferrule terminals designed to seamlessly fit standard Class CC fuse holders. Built as a rejection-style fuse, its specialized physical profile prevents the accidental installation of lower-rated midget fuses, ensuring your systems always maintain proper code-compliant branch circuit protection.
- Engineered with a premium fiberglass body and an interior packed with high-grade silica filler, the ATQR7 delivers exceptional dimensional stability and fast arc quenching under extreme conditions. It will not warp or degrade when exposed to the continuous heat and vibration typical of industrial motor control centers and electrical distribution panels.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Fuse Class
- Class CC
- Time Delay
- Yes
- Diameter
- 0.41 in
- Connection Type
- Ferrule
- Body Material
- GMG (Fiberglass body, high-grade silica filler)
- Mounting Type
- Clip
Amperage7 A
Interrupting Rating200 kA AC, 100 kA DC
Length1.5 in
Weight0.017 lb
Connection MaterialTin-Plated Copper
Frequency50/60 Hz
ComplianceUL Listed, CSA Certified, DC Listed, RoHS Compliant
