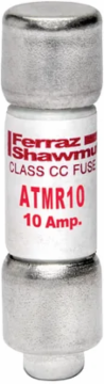

Mersen ATMR10 Fuse Amp-Trap 600V 10A Fast-Acting Class CC, 200 kA Max Breaking Capacity
- MPN: ATMR10
- UPC: 782001904531
- PPN: FER-ATMR10
CAD
$10.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Features
- Engineered with a highly responsive fast-acting element, this 10-amp Amp-Trap® fuse provides exceptional current-limiting protection for delicate industrial components. By immediately clearing electrical faults, it safeguards expensive control transformers, relays, and branch lighting circuits from catastrophic thermal damage, drastically reducing unpredictable equipment downtime.
- Rated for operations up to 600 volts with a massive 200,000 Amp AC (100kA DC) Short Circuit Current Rating (SCCR), this high-performance fuse safely interrupts severe surges before they can cascade through your system. This robust current-limiting capability restricts destructive fault energy, keeping your facility's critical electrical distribution panels safe and fully operational across demanding factory floors.
- Featuring standard 13/32" x 1-1/2" dimensions with a specialized Class CC rejection footprint, this cartridge fuse snaps securely into compatible holder clips while mechanically preventing the dangerous installation of lower-rated midget fuses. This physical fail-safe guarantees that your electrical enclosures remain properly rated and protected, eliminating hazardous mismatches during routine maintenance.
- Fully UL Listed to Standard 248-4 and CSA Certified, this industrial-grade protective device ensures your motor control centers and automated machinery easily pass rigorous local safety inspections. Relying on factory-tested, compliant hardware mitigates liability risks and guarantees your commercial build meets essential OSHA and National Electrical Code (NEC) requirements for workplace safety.
Documentation & Downloads
Specifications
Additional
- AC Max Interrupting Rating
- 200 kA
- Ampere Rating
- 10 A
- Frequency
- 50/60 Hz
- Fuse Class
- Class CC
- Mounting
- Clip
- Connection Terminal Material
- Tin-Plated Copper
- Weight
- 0.017 lb
DC Interrupting Rating100 kA
Voltage600 V
Speed/CharacteristicFast-Acting
Length1.5 in
Connection Terminal TypeFerrule
Body/Insulating MaterialGMG
ComplianceRoHS Compliant
