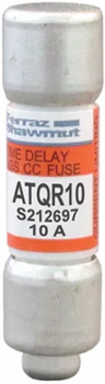

Mersen ATQR10 Fuse Amp-Trap 2000® 600V 10A Time-Delay Class CC with Tin-Plated Copper Terminal
- MPN: ATQR10
- UPC: 782001906665
- PPN: FER-ATQR10
CAD
$10.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems
Features
- The Mersen ATQR10 is a 10-Amp Class CC time-delay fuse specifically engineered for the high-inrush currents associated with control transformers, solenoids, and small motor loads. It provides a minimum 12-second time delay at 200% of its rating, allowing your equipment to start up smoothly without the "nuisance tripping" that often plagues non-time-delay fuses.
- As a Class CC fuse, the ATQR10 is highly current-limiting. In the event of a short circuit, it reacts in less than half a cycle to clear the fault. By drastically reducing the "let-through" energy (I^2t), it shields delicate downstream components from the mechanical and thermal stresses of a massive electrical surge, ensuring your control panels remain safe.
- Despite its compact size, this fuse boasts a massive 200,000 Amp (200kA) AC interrupting rating. This allows it to safely extinguish extreme electrical arcs in high-capacity Canadian industrial facilities, providing a robust layer of protection that exceeds standard safety requirements for branch circuits.
- The ATQR series features a unique physical rejection tip on the end cap. When used with a Class CC fuse holder, this design prevents the accidental insertion of non-current-limiting "Midget" fuses. This "fool-proof" safety feature ensures that your system always maintains its engineered level of short-circuit protection and CEC (Canadian Electrical Code) compliance.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Fuse Class
- Class CC
- Mounting
- Clip
- Weight
- 0.017 lb
- Connection Material
- Tin-Plated Copper
- Compliance
- RoHS Compliant
Amperage10 A
Fuse TypeTime Delay
Frequency50/60 Hz
Length1.5 in
Connection TypeFerrule
Body MaterialGMG
