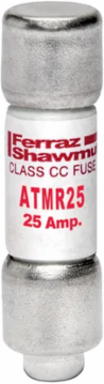

Mersen ATMR25 Fast-Acting Class CC Fuse 600V 25A 200kA Breaking Capacity
- MPN: ATMR25
- UPC: 782001904838
- PPN: FER-ATMR25
CAD
$10.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Features
- Featuring a specialized rejection tip, this standard 13/32 in times 1-1/2 in (10.4 times 38.1 mm) cartridge fuse physically blocks the installation of lesser-rated or standard midget fuses into the block. This mechanical safeguard ensures field maintenance crews can only substitute code-compliant Class CC fuses, maintaining the engineered safety threshold of your automation panels.
- Boasting a massive 200,000 AIC rating at 600V AC (and 100kA at 600V DC), this current-limiting fuse safely clears severe faults without rupturing. It effectively clamps the peak let-through energy flowing down the line, safeguarding downstream equipment and ensuring your industrial switchboards pass stringent electrical inspector criteria.
- Engineered with an ultra-fast reaction speed, the ATMR25 provides immediate overcurrent protection for components vulnerable to sudden spikes. By opening the circuit instantly during a fault, it isolates delicate control circuit transformers, relays, and solid-state instrumentation before damaging thermal energy can cause localized system burnout.
Documentation & Downloads
Specifications
Additional
| Amperage | 25 A |
|---|---|
| Interrupting Rating AC | 200 kA |
| Fuse Class | Class CC |
| Body/Insulating Material | GMG |
| Connection/Terminal Type | Ferrule |
| Weight | 0.017 lb |
| Mounting | Clip |
| ROHS Compliance | Yes |
| Voltage | 600 V AC/DC |
|---|---|
| Interrupting Rating DC | 100 kA |
| Speed/Characteristic | Fast-Acting |
| Length | 1.5 in |
| Connection/Terminal Material | Tin-Plated Copper |
| Frequency | 50/60 Hz |
| Current Limiting | Yes |
