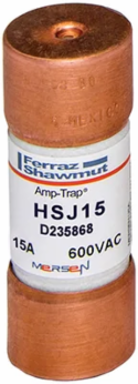

Mersen HSJ15 Fuse Amp-Trap 600V 15A High-Speed Class J Fuse, 1.26 lb, Ferrule Terminal
- MPN: HSJ15
- UPC: 782001329464
- PPN: FER-HSJ15
CAD
$49.01
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The High Speed Class J (HSJ) combines the low I2t of a semiconductor fuse and the branch-circuit performance of a Class J UL Listed fuse into a single design. The HSJ can provide both branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.
Documentation & Downloads
Specifications
Key Specifications
| Rated voltage AC UL | 600 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| Fuse Class | Class J |
| Mounting | Clip |
| Connection/Terminal Material | Tin-Plated Copper |
| Body/Insulating Material | GMG |
| Weight | 0.089 lb |
| Rated voltage DC UL | 500 V |
|---|---|
| Ampere Rating | 15 A |
| AC or DC | AC/DC |
| Speed/Characteristic | High Speed |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Connection/Terminal Type | Ferrule |
| Length | 2.25 in |
