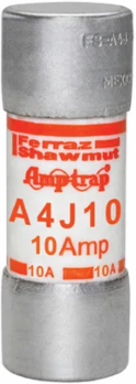

Mersen A4J10 Amp-Trap® 600V 10A Fast-Acting Class J Fuse, 2.25 Inch Length, 0.81 Inch Diameter
- MPN: A4J10
- UPC: 782001960131
- PPN: FER-A4J10
CAD
$9.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap fast-acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.
Features
- Engineered with highly advanced current-limiting capabilities, this fast-acting Amp-Trap series fuse responds in milliseconds to severe overcurrent events. By forcing a low peak let-thru current, it safely isolates faults before downstream electronic components suffer irreversible thermal or magnetic breakdown.
- This cylindrical ferrule-terminal fuse measures exactly 13/16 inches in diameter by 2-1/4 inches in length, conforming strictly to standard Class J dimensions. Its specialized rejection design acts as a physical safeguard, preventing maintenance teams from accidentally replacing it with a lower-rated or non-current-limiting fuse class.
- Built to handle demanding industrial electrical systems, this fuse carries a full 600V AC and 300V DC power rating. This structural flexibility makes it ideal for mixed-voltage environments, allowing you to protect everything from standard AC feeder circuits to critical DC solar arrays, capacitors, and industrial battery banks with a single component.
- Boasting a massive 200kA AC and 100kA DC interrupting rating (AIC), this component safely manages massive electrical faults without rupturing. The robust fiberglass body delivers exceptional structural and dimensional stability under extreme pressure, preventing catastrophic arc flashes and protecting your enclosure or panelboard
- Optimized for fine-tuned 10A low-voltage branch circuit protection, this fast-acting component is tailor-made for non-inductive, sensitive electronic loads. It provides reliable, rapid isolation for switchboards, industrial lighting circuits, resistive heating elements, load centers, and main circuit breaker back-up arrays.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC / 300 V DC
- Interrupting Rating AC
- 200 kA
- Fuse Class
- Class J
- Frequency
- 50/60 Hz
- Length
- 2.25 in
- Weight
- 0.097 lb
- Connection Type
- Ferrule
- Material
- PolyTube body, fiberglass body mentioned
- Compliance
- UL Listed, CSA Certified, IEC 269-2-1
Amperage10 A
Interrupting Rating DC100 kA
Fuse TypeFast-Acting
AC or DCAC/DC
Diameter0.81 in
Connection MaterialTin-Plated Copper
MountingClip
RoHS CompliantYes
