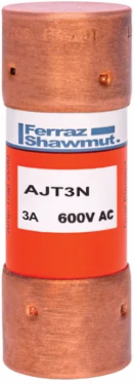

Mersen AJT3N Fuse Amp-Trap 2000® 600V AC 3A Time-Delay Class J, 0.81 Inch Diameter
- MPN: AJT3N
- UPC: 782001498054
- PPN: FER-AJT3N
CAD
$15.50
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features
- Engineered with an intentional time-delay characteristic, this 3-amp, 600VAC fuse easily withstands temporary harmless surge currents caused by large motors, transformers, and inductive loads. By absorbing these brief startup spikes while still providing razor-sharp short-circuit protection, it completely eliminates costly, unnecessary production halts caused by premature fuse clearing.
- The AJT3N is a highly current-limiting Class J fuse designed to rapidly isolate faults and restrict destructive electromagnetic and thermal energy (I^2t) before it can reach vulnerable system components. With a massive 200,000-amp interrupting rating (IR), it ensures your industrial control panels and motor branch circuits remain fully protected against catastrophic short circuits, maintaining optimal Type 2 coordination.
- Occupying a fraction of the physical space required by standard Class RK fuses, the compact Class J dimensions of the AJT3N allow industrial engineers to design smaller, more cost-effective control panels. This standardized footprint ensures a flawless drop-in fit for modern, high-density fuse blocks and disconnect switches without sacrificing superior electrical performance.
- Fully certified to UL 248-8 and CSA C22.2 No. 248.8 standards, this industrial-grade fuse guarantees total compliance with rigorous North American electrical safety codes. Relying on factory-tested, code-compliant hardware ensures your facilities pass electrical inspections smoothly and maintains your operation's strict safety standards.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC / 400 V DC
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Speed/Characteristic
- Time Delay
- Length
- 2.25 in
- Mounting
- Clip
- Connection Material
- Tin-Plated Copper
- Material
- GMG body (fiberglass with high-grade silica filler)
Amperage3 A
Frequency50/60 Hz
Fuse ClassClass J
Diameter0.81 in
Connection TypeFerrule
Weight0.097 lb
ComplianceUL Listed, CSA Certified, IEC Type 2 No Damage, RoHS Compliant
