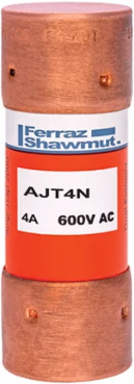

Mersen AJT4N Amp-Trap 2000® Class J Time-Delay Fuse, 600V AC, 4A Rating, Compact Design
- MPN: AJT4N
- UPC: 782001498085
- PPN: FER-AJT4N
CAD
$15.50
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features
- Engineered with an advanced dual-element time-delay characteristic, this 4-Amp fuse easily tolerates temporary inductive inrush currents from small motors and control transformers. It prevents expensive nuisance shutdowns during equipment startup while still providing precise, rapid-acting overload protection if a sustained electrical fault occurs.
- Providing the same robust 600V AC protection as bulkier Class RK fuses, this compact Class J ferrule-style cartridge requires only half the structural mounting space. This smaller physical profile allows industrial panel builders to utilize highly economical, compact fuse blocks and disconnect switches, maximizing valuable layout territory inside crowded control cabinets.
- Part of the premium Amp-Trap 2000® series, this fuse delivers elite current-limiting performance that dramatically reduces peak let-thru energy during a short circuit. This ultra-fast arc quenching shields sensitive solid-state relays, PLCs, and branch circuit components from severe thermal and mechanical stress, ensuring your system achieves stringently rated IEC Type 2 "No Damage" infrastructure protection.
- Boasting a massive 200,000-amp AC interrupting capacity at 600 Volts, this overcurrent device safely handles severe energy faults without rupturing or fragmenting. This immense breaking capacity easily meets demanding modern facility available fault current (AFC) requirements, minimizing severe arc flash hazards and keeping your building fully code-compliant.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 500 V DC
- Fuse Class
- Class J
- Interrupting Rating
- 200 kA AC, 100 kA DC
- Length
- 2.25 in
- Mounting
- Clip
- Connection Terminal Material
- Tin-Plated Copper
- ROHS Compliant
- Yes
Amperage4 A
Speed/CharacteristicTime Delay
Frequency50/60 Hz
Weight0.097 lb
Body MaterialGMG Fiberglass
Connection Terminal TypeFerrule
