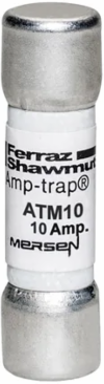

Mersen ATM10 Fuse Amp-Trap Midget 600V 10A Fast-Acting, 1-1/2 Inch x 13/32 Inch, 100kA I.R.
- MPN: ATM10
- UPC: 782001900670
- PPN: FER-ATM10
CAD
$8.90
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Features
- Measuring a standard 13/32" x 1-1/2" (10x38mm), the ATM10 is a versatile midget-class fuse designed for a wide range of industrial and commercial supplemental protection applications. This standardized footprint ensures a secure, high-conductivity fit in standard fuse blocks and disconnects, making it a reliable drop-in solution for protecting control transformers, solenoids, and small motor circuits.
- Engineered with a fast-acting internal element, this fuse provides immediate interruption during short circuits or significant overcurrent events. This rapid response time is critical for safeguarding delicate solid-state devices and control circuit components that cannot withstand the thermal stress of a time-delay fuse, effectively preventing "smoke" and costly board-level repairs.
- With a high-performance 600V AC and DC voltage rating, the ATM10 is optimized for diverse power environments, including 480V industrial control loops and high-voltage DC photovoltaic (PV) string protection. This dual-rated capability simplifies your inventory by allowing one fuse to serve across multiple high-voltage platforms while maintaining consistent safety and reliability.
- Rated for a continuous 10-amp load with a 100,000 Amp interrupting rating (IR), this fuse is built to safely extinguish massive electrical arcs without rupturing the cartridge. This high-capacity protection ensures that even under severe fault conditions, the energy is contained, protecting your personnel from arc-flash hazards and keeping your electrical enclosures compliant with UL 248-9 standards.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Interrupting Rating
- 100 kA
- Length
- 1.5 in
- Connection/Terminal Type
- Ferrule
- Frequency
- 50/60 Hz
- Mounting
- Clip
- Compliance
- UL Listed, CSA Certified, RoHS Compliant
Amperage10 A
Fuse TypeFast-Acting
Body/Insulating MaterialGMG
Connection/Terminal MaterialTin-Plated Copper
Fuse ClassMidget
Weight0.017 lb
