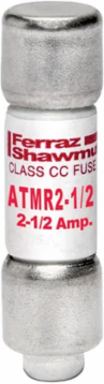

Mersen ATMR2-1/2 Fuse Amp-Trap® Fast-Acting Class CC 600V 2.5A, 1.5 Inch Length, 0.41 Inch Diameter
- MPN: ATMR2-1/2
- UPC: 782001903855
- PPN: FER-ATMR2-1/2
CAD
$10.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.
Documentation & Downloads
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Fuse Class
- Class CC
- Mounting
- Clip
- Connection/Terminal Material
- Tin-Plated Copper
- Body/Insulating Material
- GMG
- Weight
- 0.017 lb
Rated voltage DC UL600 V
Ampere Rating2.5 A
AC or DCAC/DC
Speed/CharacteristicFast-Acting
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeFerrule
Length1.5 in
