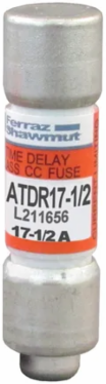

Mersen ATDR17-1/2 Fuse Amp-Trap 2000® 600V 17.5A Time-Delay Class CC, Diameter 0.41 Inch
- MPN: ATDR17-1/2
- UPC: 782001901981
- PPN: FER-ATDR17-1/2
CAD
$9.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time-delay characteristics in their class with excellent cycling ability for small motor loads.
Features
- Operating as a highly current-limiting device, it restricts peak let-through current to protect downstream contactors, solid-state relays, and control elements. This premium thermal and mechanical defense delivers IEC Type 2 "No Damage" protection, shielding vulnerable automation systems from catastrophic distortion during a fault.
- Built strictly to physical Class CC specifications ($13/32\text{ in} \times 1-1/2\text{ in}$), this fuse includes a specialized rejection tip that prevents its accidental replacement with a lower-rated or standard midget fuse. This mechanical safeguard prevents facility personnel from compromising branch circuit safety protocols, ensuring local electrical systems remain fully code-compliant.
- Featuring an exceptional interrupting capacity of 200,000 Amps AC at 600V and 100,000 Amps DC at 300V, this 17.5-Amp fuse safely clears severe short circuits without physical rupture. This massive capacity allows maintenance engineers to install it into high-energy industrial supply panels, heating systems, and primary branch networks with total peace of mind.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC, 300 V DC
- Breaking Capacity AC
- 200 kA
- Speed/Characteristic
- Time Delay
- Fuse Class
- Class CC
- Diameter
- 0.41 in
- Connection/Terminal Material
- Tin-Plated Copper
- Mounting
- Clip
- Filler Material
- High-grade silica
Amperage17.5 A
Breaking Capacity DC100 kA
Frequency50/60 Hz
Length1.5 in
Weight0.017 lb
Connection/Terminal TypeFerrule
Body/Insulating MaterialGMG (Fiberglass)
