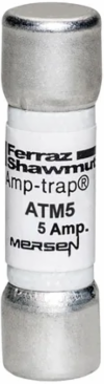

Mersen ATM5 Fuse Amp-Trap® 600V 5A Fast-Acting Midget Fuse, 1-1/2 Inch x 13/32 Inch, 100kA I.R.
- MPN: ATM5
- UPC: 782001900755
- PPN: FER-ATM5
CAD
$8.90
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap® midget fast-acting ATM fuses are rated 600 volts AC and DC, with a 100kA interrupting rating. These ratings give the ATM a wide range of applications not covered by other midget fuses. In addition, ratings of 30/35, 30/40 and 30/50 amperes are offered for specific applications such as capacitor protection. These ATM fuses must still be considered 30A fuses because of their dimensions, but are able to withstand much higher inrush currents and tougher duty cycles. (Not for Branch Circuit Protection).
Features
- Engineered as a premium, non-time-delay supplemental protection device, the Mersen ATM5 clears short circuits in milliseconds. This rapid, fast-acting response safely isolates faults before harmful overcurrent spikes can travel downstream and destroy vulnerable control components, PLCs, or small laboratory instruments.
- Featuring a versatile 600V AC and 600V DC operating threshold, this Amp-Trap® midget fuse eliminates the need to stock separate fuses for alternating and direct current networks. It provides high-voltage versatility across a broad spectrum of applications, ranging from standard industrial motor control transformers to advanced photovoltaic and solar power systems
- Boasting a massive 100,000-amp breaking capacity, this low-voltage ferrule fuse safely contains and extinguishes high-energy thermal events. This exceptional current-limiting threshold guarantees that your control panels maintain a high Short Circuit Current Rating (SCCR), preventing catastrophic housing ruptures and maintaining stringent facility safety.
- Measuring the industry-standard 13/32" diameter by 1-1/2" length (10.3 mm times 38.1 mm), the ATM5 seamlessly retrofits into standard open clip blocks or enclosed finger-safe fuse holders, such as the Mersen UltraSafe™ series. This drop-in form factor ensures hassle-free routine maintenance and eliminates mechanical compatibility headaches during critical panel retrofits.
- Constructed with a premium Glass-Melamine (GMG) body and tin-plated copper ferrule terminals, this fuse delivers superior dimensional stability and high arc-quenching resilience. It resists degradation from high operating temperatures and vibration-heavy environments, guaranteeing low-resistance connectivity and structural integrity over years of continuous service
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Interrupting Rating
- 100 kA
- Length
- 1.5 in
- Weight
- 0.017 lb
- Material
- GMG body, Tin-Plated Copper terminals
- Frequency
- 50/60 Hz
Amperage5 A
Fuse TypeFast-Acting Midget
MountingClip
Connection TypeFerrule
Fuse ClassMidget
ComplianceROHS Compliant
