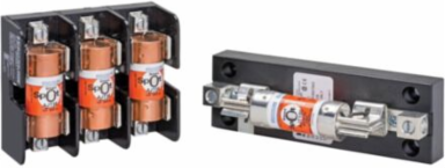

Mersen 60603J Fuse Bases 600V 60A Class J 3-Pole Tin-Plated Aluminum, 200 kA SCCR, Direct Screw Mount
Mersen 60603J Fuse Bases 600V 60A Class J 3-Pole Tin-Plated Aluminum, 200 kA SCCR, Direct Screw Mount
- MPN: 60603J
- UPC: 782001758295
- PPN: FER-60603J
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$66.13/ EA
Description
A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30A, 60A and the new 100A SJ fuse blocks feature a unique adder block configuration which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring-reinforced or non-spring reinforced clips. Space saving options are now available in the 30A and 100A configurations which are noted in the product selection tables.
Features
- Class J Blocks (600V) use with AJT, A4J, HSJ
Specifications
Specifications
- Frequency Hz
- 50/60 Hz
- Max Storage Temp
- 80 °C
- Short Circuit Current Rating Sccr
- 200 kA
- Max Fuse Rating
- 60 A
- Rated Voltage Dc Ul
- 600 V
- Country Of Origin
- MX
- Body Insulating Material
- GFPC
- Number Of Poles
- 3-pole
- Wire Connections
- Box
Max Operating Temp80 °C
Min Storage Temp-25 °C
Ampere Rating60 A
Rated Voltage Ac Ul600 V
Torque Rating45 lb-in
Product LineClass J Fuseholders - Class J
Installation MountingDirect Screw Mount
Fuse Installation MethodClip-in
