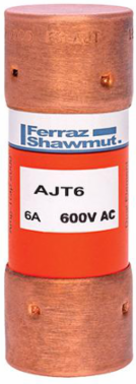

Mersen AJT6 Fuse Amp-Trap 2000 Class J 600V 6A Time-Delay, 2.25 Inch Length
- MPN: AJT6
- UPC: 782001962708
- PPN: FER-AJT6
CAD
$11.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Features

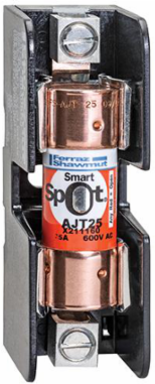

- Non-indicating or solid state SmartSpot visual blown fuse indicator
- Time-delay for motor starting and transformer inrush
- 300kA interrupting rating - self-certified, UL witnessed tests
- Extremely current-limiting for low peak let-thru current
- Most current-limiting UL class fuse
- Recommended for Arc Flash energy reduction

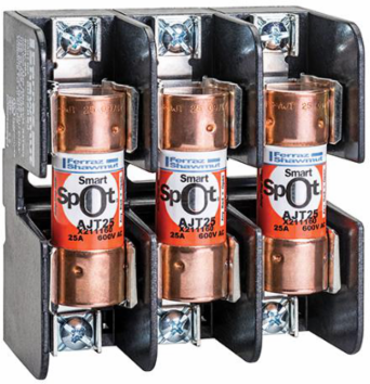

- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique Class J dimensions prevent replacement errors
- High-visibility orange label gives instant brand recognition
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching
- Optional EI indicator/switch mount for AJT70 to 600 open fuse indication
Documentation & Downloads
Specifications
Key Specifications
- Sell Pack Height
- 1.69 in
- Product Diameter
- 0.81 in
- Mounting
- Clip
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Sell Pack Weight
- 2.1 lb
- Sell Pack Length
- 4.25 in
- Connection/Terminal Type
- Ferrule
- Speed/Characteristic
- Time Delay
- Connection/Terminal Material
- Tin-Plated Copper
- Rated voltage AC UL
- 600 V
Product Weight0.2 lb
Product Length2.25 in
Ampere Rating6 A
ROHS CompliantYes
Sell Pack Width2.38 in
Body/Insulating MaterialGMG
Sell Pack Quantity10 Each
Fuse ClassClass J
Frequency50/60 Hz
Rated voltage DC UL500 V
