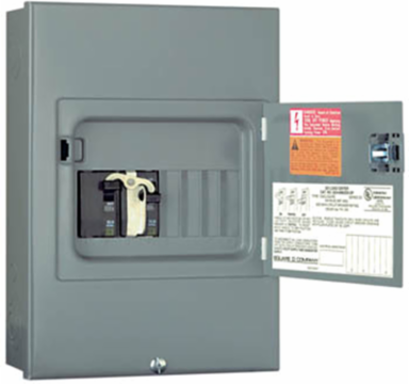

Square D CQO48M30DSGP Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 30A main breaker with interlock, NEMA1, surface cover door, CSA
Square D CQO48M30DSGP Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 30A main breaker with interlock, NEMA1, surface cover door, CSA
- MPN: CQO48M30DSGP
- UPC: 785901301387
- PPN: SCH-CQO48M30DSGP
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$376.78/ EA
Description
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase generator panel has 4 spaces and 8 circuits. This system provides 30A main breaker interlock in a NEMA 1 enclosure. It includes a surface cover door and is CSA rated.
Specifications
Environment
- Product Certifications
- cULus || CSA
- Ambient Air Temperature For Operation
- -5 °C || 40 °C
Nema Degree Of ProtectionNEMA 1 indoor generator
Complementary
- Height
- 324 mm
- Tightening Torque
- cover 20 lb.in
- [In] Rated Current
- 30 A
- Width
- 229 mm
- Electrical Connection
- lugs
- Number Of Circuits
- 4
- Loadcentre Type
- Main Breaker
- Box Number
- 4
Number Of Tandem Circuit Breakers8
[Ue] Rated Operational Voltage120/240 V AC
Awg GaugeAWG 14...AWG 8 aluminum/copper
Wiring Configuration3-wire
Depth95 mm
Number Of Spaces4
Network Number Of Phases1 phase
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2212001
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Specifications
- Cover Type
- surface cover
- Product Or Component Type
- panel
Range Of ProductQO
