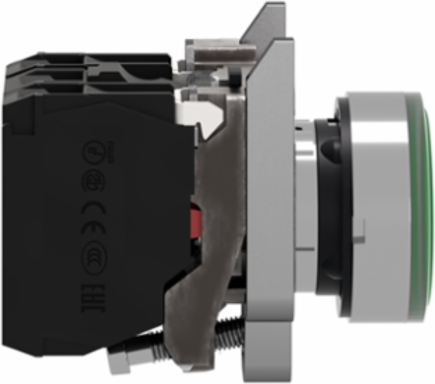

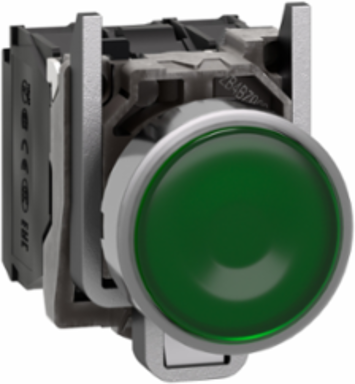

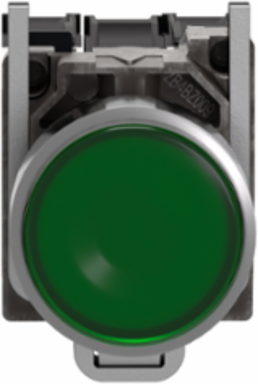

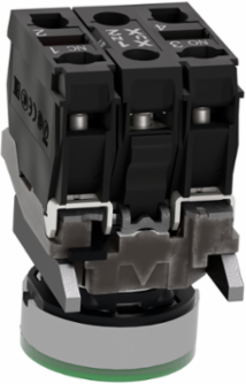

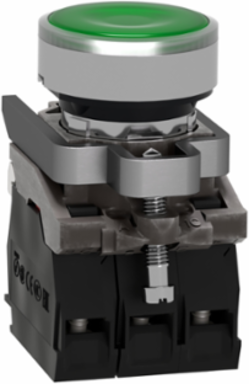

Schneider Electric XB4BW33G5 Harmony XB4 Green Illuminated Push Button 22mm, 110-120V AC
- MPN: XB4BW33G5
- PPN: SCH-XB4BW33G5
CAD
$106.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4 illuminated modular green push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Mexico, United States |
|---|
| Depth | 57 mm |
|---|
Physical Attributes
| Cap Operator Or Lens Color | green |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | no, 1 |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Cap Operator Or Lens Color | green |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
| Terminals Description Iso N°1 | (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1616004873, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.7 kg CO2 eq., 0.730024269 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 17 % |
| Bezel Material | chromium plated metal |
| Compatibility Code | XB4 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard contacts |
| Device Short Name | XB4 |
| Electromagnetic Emission | class B IEC 55011 |
| Gcr Bridge | XB4BWCUST04 |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks. |
| Mechanical Durability | 10000000 cycles |
| Operating Travel | 1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel) |
| Operator Profile | green flush |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB4 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | round |
| Signalling Type | steady |
| Supply Voltage Limits | 100-132 V AC |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Type Of Operator | spring return |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 47 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Product Repair Index - Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Operating Force | 3.5 N NC changing electrical state, 3.8 N |
| Supply Voltage | 110...120 V |
| Certificate Agency | CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV |
| [Us] Rated Supply Voltage | 110...120 V, 110...120 V AC 50/60 Hz |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0155162183, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0142607018 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 50 kg CO2 eq., 49.6741404603 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1808008EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 28 % |
| Bulb Base | integral LED |
| Contact Operation | slow-break |

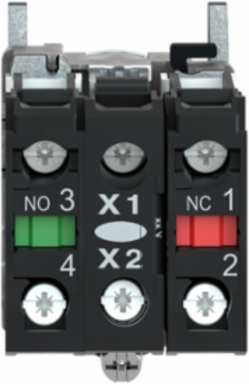

| Contacts Type And Composition | 1 NO + 1 NC |
| Current Consumption | 14 mA |
| Electrical Shock Protection Class | class I conforming to IEC 60536 |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Light Source | universal LED |

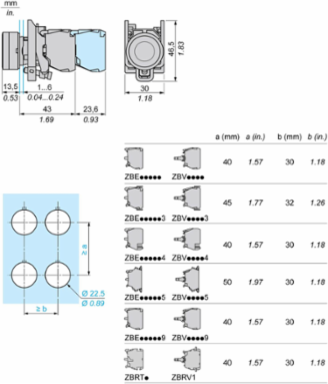

| Mounting Diameter | 22.5 mm |
| Operator Additional Information | with plain lens |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Or Component Type | illuminated push-button |
| Protective Treatment | TH |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Returnability | Yes |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 51 kg CO2 eq. |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP1808008EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 75 |
| Width Nominal | 30 mm |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Cap/Operator Or Lens Colour | green |
| Short-circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Package Weight(Lbs) | 96.000 g |
| Take-back | No |
| Customs Code | 8536509033 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 50.5955421367 |
| Environmental Disclosure | ENVPEP1808008EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 13, NEMA 4X, UL type 4X/13 |
| Recycled Metal Content At Cr Level | 17 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1808008EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | illuminated push-button |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|
| ETIM 9 | EC001028 |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV IEC 61000-4-5 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
