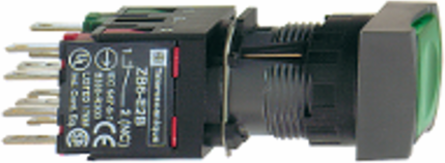

Harmony XB6 16mm Green Latching Illuminated Push Button, IP65
Schneider Electric

Schneider Electric XB6CF3B1B Harmony XB6 16mm Green Latching Illuminated Push Button, IP65

  • MPN: XB6CF3B1B
  • PPN: SCH-XB6CF3B1B
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $52.62

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Elevate your control systems with the Harmony XB6 illuminated push button from Schneider Electric, designed for both functionality and durability. This 16mm latching push button features a vibrant green square flush operator, ensuring visibility in various lighting conditions, while its robust construction allows for operation in extreme temperatures ranging from -25 C to 70 C. With a high electrical durability of up to 1,000,000 cycles, it is perfect for demanding environments, providing reliable performance for automation and control applications. The IP65 rating ensures protection against dust and water, making it suitable for a wide range of industrial settings. Additionally, this push button is designed with user safety in mind, featuring class II electrical shock protection and compliance with multiple international standards.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France, Mexico
    Depth57 mm

    Important Information Attributes

    Electrical Durability
    1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    Certificate Agency
    CSA, GOST, UL, CCC
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Product Kit Identifier
    N
    Bulb Base
    integral LED
    Contact Operation
    slow-break
    Contacts Type And Composition
    1 NO
    Device Short Name
    XB6
    Electrical Shock Protection Class
    class II conforming to IEC 61140
    Light Source
    LED
    Operating Force
    3.5 N NO changing electrical state
    Operating Travel
    1 mm NO changing electrical state)3.5 mm total travel)
    Positive Opening
    with EN/IEC 60947-5-1 appendix K
    Product Or Component Type
    complete illuminated push-button
    Range Of Product
    Harmony XB6
    Resistance To Electrostatic Discharge
    6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
    Returnability
    Yes
    Shape Of Signaling Unit Head
    square
    Signalling Type
    steady
    Sustainable Packaging
    No
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    18 mm
    [Ui] Rated Insulation Voltage
    250 V 3)EN/IEC 60947-1
    [Us] Rated Supply Voltage
    12...24 V AC/DC
    Short-circuit Protection
    6 A cartridge fuse gG
    Package Weight(Lbs)
    21.000 g
    Warranty (In Months)
    18
    Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Terminals Description Iso N°1(13-14)NO, (13-14)NO
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Bezel Materialplastic
    Compatibility CodeXB6
    Contacts Materialsilver alloy (Ag/Ni)
    Current Consumption15 mA
    Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
    Electromagnetic Emissionclass B IEC 55011
    Mounting Diameter16 mm
    Operating Positionany position
    Operator Profilegreen flush, unmarked
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTC
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    Resistance To Fast Transients2 kV IEC 61000-4-4
    Sale Per Indivisible Quantity1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Supply Voltage Limits6-30 V AC/DC
    Type Of Operatorlatching
    Height Nominal18 mm
    [Ie] Rated Operational Current3 A 120 V, AC-15, B300 EN/IEC 60947-5-11.5 A 240 V, AC-15, B300 EN/IEC 60947-5-10.1 A 250 V, DC-13, R300 EN/IEC 60947-5-10.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1
    Connections - TerminalsFaston connectors 2.8 x 0.5 mm
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536509031

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Nema Degree Of Protection
    NEMA 4 CSA C22.2 No 94NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP65 IEC 60529
    Packaging Without Single Use Plastic
    No
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    complete illuminated push-button
    Range Of ProductHarmony XB6

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Surge Protection And Filtering Attributes

    Surge Withstand
    1 kV direct contact IEC 61000-4-52 kV in free air IEC 61000-4-5

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
