Burndy YGLR34C34 Copper Compression Connector for Grounding, 250-500 kcmil, 3/4 Inch Rod
- MPN: YGLR34C34
- UPC: 781810220856
- PPN: BUR-279164
CAD
$301.29
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

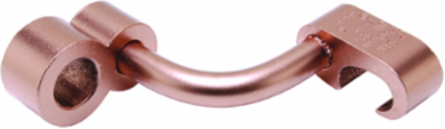

Copper Compression Connector, Ground Rod to Grid, 250 kcmil - 500 kcmil,3/4" Ground Rod.
Documentation & Downloads
Specifications
Additional
| Conductor Size Range | 250 kcmil-500 kcmil |
|---|---|
| Prefilled Oxide Inhibitor | Yes |
| Number of Crimps Required | 2 |
| Plated | No |
| Oxide Inhibitor Type | Penetrox E |

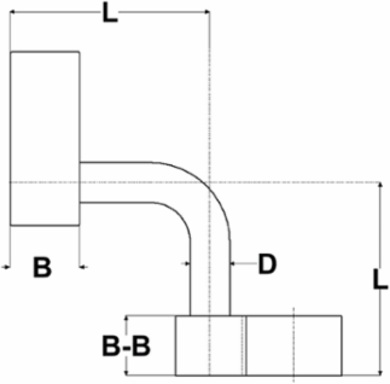

| Dimension B Length | 0.75 in |
| Dimension Length BB | 0.88 in |
| UL Listed | Yes |
| Certification - UL Listed Direct Burial | Yes |
| Ground Rod Size | 3/4 in |
|---|---|
| Connector Type | Tap |
| Precrimp Die | UPRECRIMP34 |
| Plating Type | Unplated |
| Length Overall | 2.63 in (67 mm) |
| Dimension D | 0.50 in |
| Material | Copper |
| Certification - CSA Approved | Yes |
| Compliance | UL467, IEEE 837, IEEE 837 2014 Qualified |
