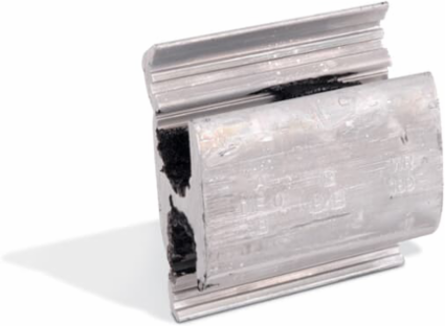

Blackburn WR189R H-Type Compression Tap Connector, 1-11/16 Inch, 2 Conductors, Tin-Plated
- MPN: WR189R
- UPC: 783786534036
- PPN: T-B-WR189R
- UNSPSC: 39121409
CAD
$3.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Aluminum H-Tap Connector, Wide Range, Industry Standard Size Code 2, Conductor Range Main ASCR 1/0, #1, #2, Stranded 2/0, 1/0, #1, #2, Solid 3/0, 2/0, 1/0, #1, #2 TAP ASCR #2, #4, #6, Stranded #1, #2, #3, #4, #6, Solid #2, #4, #6, Die O, 25 Pieces
Specifications
Additional Information
- Application
- For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
- Connection Type
- Compression
- Insulation Material
- None
- Number of Conductors
- 2
- Product Type
- H-Type Compression Tap Connector
- Special Functions
- Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area. Tin-Plated
- Surface Finishing
- Tin-Plated
Brand / LabelBlackburn
Effective Date20120830
Mounting TypeNone
Product NameCOMPRESSION CONNECTOR
SizeLength 1-11/16 inch
StandardsRUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rangeup to 90 °C
Ordering
- Country of Origin
- Mexico (MX)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4543 >> Wire connectors
