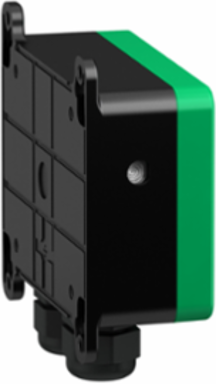

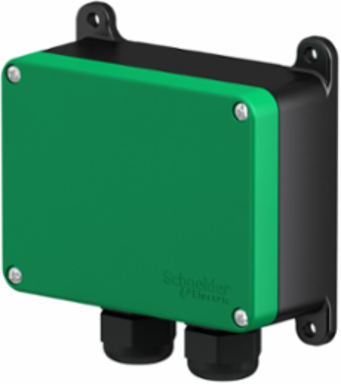

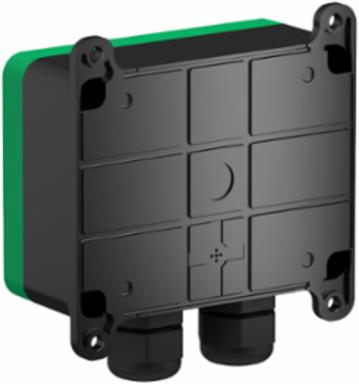

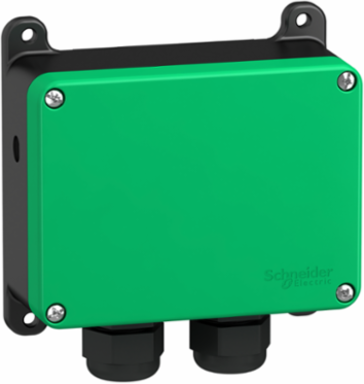

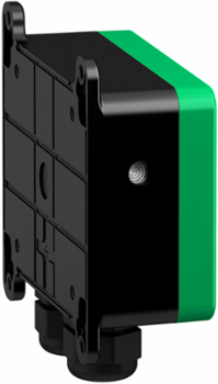

Schneider Electric ZARB10WS Harmony eXLhoist Base Station 10 Relays Outputs, IP66, 48-240V AC
- MPN: ZARB10WS
- PPN: SCH-ZARB10WS
CAD
$809.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony eXLhoist / XAR green base station (receiver) has 10 relays outputs with 2 safety relays. This green base station (receiver) is designed as receiver for wireless remote control system. It has 10 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP66, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, United States

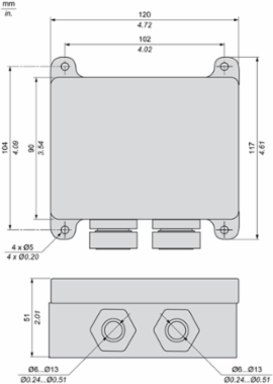

Depth51 mm
Communications & Management Attributes
- Communication Network Type
- wireless Zigbee
Complementary Attributes
- Maximum Sensing Distance
- 100 m in free field
- Maximum Switching Voltage
- 240 V AC +/- 20 %)
Maximum Switching Current10 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Product Specific Application
- material handling, hoisting applications
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0698292598, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1424981102, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 086 kg CO2 eq., 1086.2003527494
- Local Publishable Date
- 2025-11-25
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312040EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1415
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Cable Entry
- cable gland
- Electrical Durability
- 100000 cycles
- Material
- ABS + PC
- Number Of Relays
- 10
- Product Or Component Type
- base station
- Range Of Product
- Harmony eXLhoist
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Transmission Frequency
- 2.4 GHz
- Pep Code
- ENVPEP2312040EN
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Recyclability Potential In %
- 6
- Width Nominal
- 120 mm
- [Us] Rated Supply Voltage
- 48...240 V AC
- Package Weight(Lbs)
- 515.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Radio AgreementFCC, IC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.3615292126
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.8112125984
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Product Kit IdentifierN
Device Short NameZARB
Fixing Mode4 holes
Mechanical Durability10000000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided Equipmentinternal antenna
Relay Typemotion relay outputs 9 NOauxiliary relay outputs 1 NO
Software Versionv5.9.4
Total Lifecycle Carbon Footprint1 105 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe purpose of this display-equipped remote control (transmitter) is to function as a transmitter for wireless remote control systems.This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons.It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh2102.4
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Height Nominal117 mm
Certificate AgencyCE
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-55 °C, -20-55 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1104.5854219305
- Environmental Disclosure
- ENVPEP2312040EN
- Ip Degree Of Protection
- IP66
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 0-97 %
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2312040EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2312040EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- base station
- Range Of Product
- Harmony eXLhoist
Provided Equipmentinternal antenna
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
Output Attributes
- Nominal Output Current
- 0.5 A 48 V AC IEC 60947-5-1
Safety Outputs2 NC relay outputs
