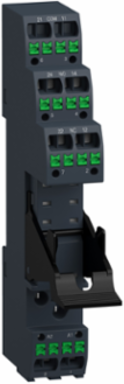

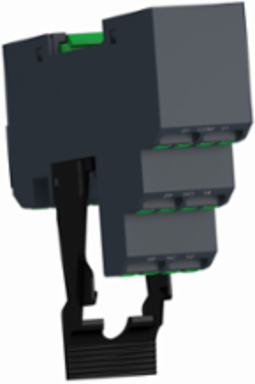

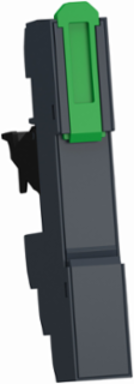

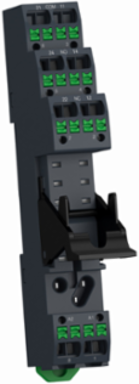

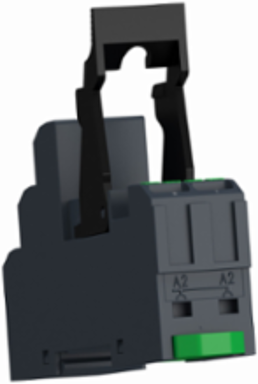

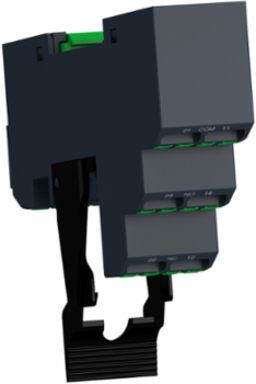

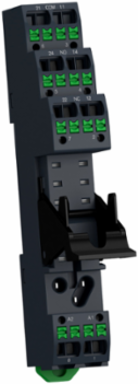

Schneider Electric RSZE08P Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact

Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact
  • MPN: RSZE08P
  • PPN: SCH-RSZE08P

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$16.28/ EA

Description

Push in socket with clamp, Harmony Electromechanical Relays, for RSB1A160 RSB2A080 relays, 10A, push in terminals, separate contact

Specifications

Environment

Product Certifications
CSA || UL || EAC
Standards
IEC 61984
Ip Degree Of Protection
IP20
Ambient Air Temperature For Operation-40-85 °C
MarkingCE
Ambient Air Temperature For Storage-40-85 °C

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
China Rohs Regulation
X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

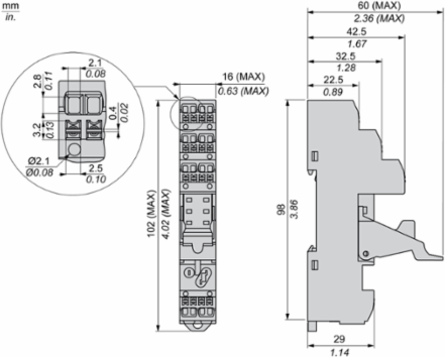

Height
60 mm
[Ue] Rated Operational Voltage
250 V IEC || 300 V UL
Shape Of Pin
flat
Contact Terminal Arrangement
separate
Fixing Mode
clip-on (35 mm symmetrical DIN rail)
Sale Per Indivisible Quantity
10
Overvoltage Category
III
[Uimp] Rated Impulse Withstand Voltage4 kV
Pollution Degree3
Length98 mm
Net Weight0.042 kg
Connections - Terminalsspring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end || spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Width16 mm

Specifications

[Ith] Conventional Free Air Thermal Current
10 A
Product Compatibility
plug-in relay RSB with 1 C/O contact at 16 A || plug-in relay RSB with 2 C/O contact at 8 A
Product Or Component Type
socket
Device Short Name
RSZ
Range Of ProductHarmony Electromechanical Relays
[Ui] Rated Insulation Voltage250 V
Contacts Type And Composition2 C/O
