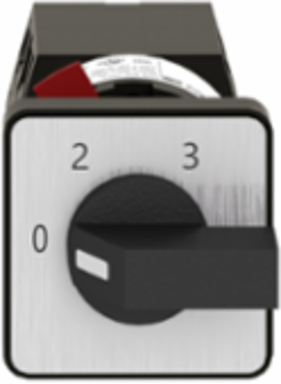

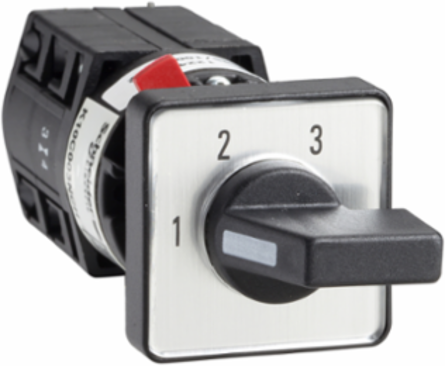

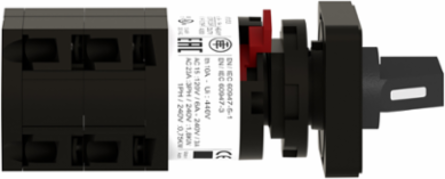

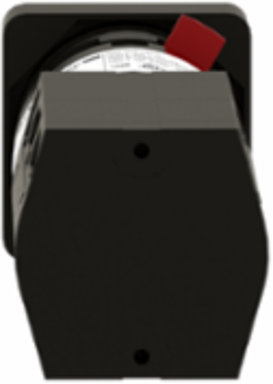

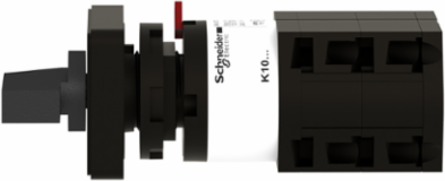

Schneider Electric K10D004NCH Complete Cam Switch 1 Pole 10A 30x30mm with Stepping Function

  • MPN: K10D004NCH
  • PPN: SCH-K10D004NCH

CAD

$88.85

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This Harmony K10 cam stepping switch has 1 pole (1P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 2 - 3 - 4" marking to indicate the position of the switch. This metal head cam stepping switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Austria

Physical Attributes

Cad Overall Depth
88 mm
Cad Overall Width
30 mm
Cad Overall Height30 mm

Complementary Attributes

Rated Operational Power In W
370 W AC-23A, 110/120 V 1 phase, 750 W AC-23A, 220/240 V 1 phase
Rated Power In Hp0.33 hp 110/120 V AC, 1 phase, 0.75 hp 220/240 V AC, 1 phase

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
[Ie] Rated Operational Current Ac
10 A 400 V AC-1, 10 A 400 V AC-21A, 3 A 240 V AC-15, 6 A 120 V AC-15
Carbon Footprint Of The Distribution Phase [A4]
0.0080399446, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0273874937, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
0 kg CO2 eq., 0
Local Publishable Date
2026-01-12
Stocking Flag
Y
Weee Scope
In
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
Yes
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Cam Switch Head Type
with front plate 30 x 30 mm
Component Name
K10
Electrical Connection
captive screw clamp terminals 2 x 1.5 mm²
Electrical Shock Protection Class
class II conforming to IEC 60536
Mechanical Durability
1000000 cycles
Number Of Steps
4
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Or Component Type
complete cam switch
Range Of Product
Harmony K
Returnability
No
Software Version
v5.9.4
Switching Angle
60 °
Total Lifecycle Carbon Footprint
0.6 kg CO2 eq.
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
K1 voltmeter switch is ideal for switching between phase-phase and phase-neutral voltage measurements on a switchboard, has a rated voltage of 690V AC. It has a square shape and a metallic legend with black marking. It is IP65 and installs with screws. This voltmeter phase switch offers the maximum mechanical and electrical robustness of its class, for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
Certificate Agency
cULus
[Ui] Rated Insulation Voltage
440 V 3)IEC 60947-1
Short-circuit Protection
10 A cartridge fuse gG
Package Weight(Lbs)
67.0 g
Warranty (In Months)
18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
[Ie] Rated Operational Current Dc10 A 24 V resistive, 0.3 A 220 V resistive, 0.7 A 110 V resistive
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1144486944
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.4181415954
Local Data StatusPublishable
Return IndicatorN
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Cam Switch Functionstepping switch
Compatibility CodeK10
Contact Operationslow-break
Electrical Durability100000000 cycles
Fixing ModeØ 16 or 22 mm hole
Number Of Poles1P
Off Positionwithout Off position
Product Mountingfront mounting
Protective TreatmentTC
Returnwithout
Rotary Handle Padlockingwithout
Sustainable PackagingYes
Switching Positionsright: 270° - 330° - 30° - 90°
Type Of OperatorBlack handle
Pep CodeENVPEP2312055EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR
[Ith] Conventional Free Air Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

Ambient Air Temperature For Operation
-20-55 °C, -20-55 °C
Ip Degree Of Protection
contact block: IP20, operating head: IP65 conforming to IEC 60529
Reach Free Shvc
Yes
China Rohs Regulation
X
Mercury Free
Yes
Environmental Disclosure
ENVPEP2312055EN
Packaging Made With Recycled Cardboard
Yes
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2312055EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.5680177281
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
complete cam switch
Range Of ProductHarmony K

ETIM

ETIM 8
EC001105
ETIM 9EC001105

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Overview Attributes

Presentation Of Legend
with metallic, 1 - 2 - 3 - 4 black
