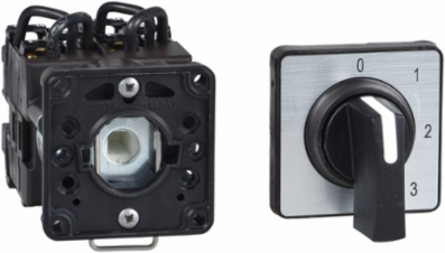

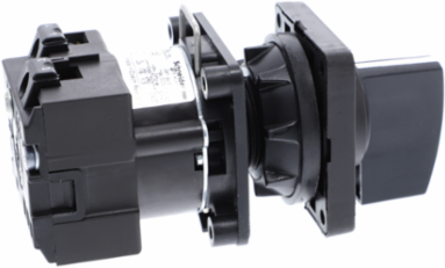

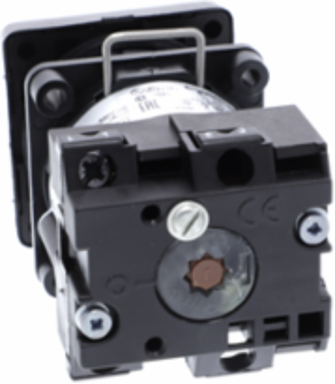

Schneider Electric K1C003QCH Harmony K 22mm Plastic Stepping Switch, 1 Pole, 3 Steps, 12A, IP65
- MPN: K1C003QCH
- PPN: SCH-K1C003QCH
CAD
$67.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This K1 single-pole stepping switch is ideal for direct control of simple machines, has a rated voltage of 690V AC and a rated current of 12A. It has a square shape and a metallic legend with black marking. It is IP65 and installs in a 22mm hole. Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony K
- Presentation Of Legend
- with metallic, 0 - 1 - 2 - 3 black
- Product Or Component Type
- complete cam switch
- Cam Switch Function
- stepping switch
- Type Of Operator
- black handle 35 mm
- Switching Positions
- right: 0° - 45° - 90° - 135°
- Poles Description
- 1P
- Return
- without
Fixing ModeØ 22 mm hole
Ip Degree Of ProtectionIP65 conforming to IEC 60529
[Ith] Conventional Free Air Thermal Current12 A
Component NameK1
Mounting Locationfront
Cam Switch Head Typewith front plate 45 x 45 mm
Rotary Handle Padlockingwithout
Off Positionwith Off position
Complementary
- Short-Circuit Protection
- 16 A cartridge fuse gG
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV in isolating function || 6 kV IEC 947-1
- Switching Angle
- 45 °
- Electrical Durability
- 1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3
- Short-Circuit Current
- 10000 A
- Positive Opening
- with
- Mechanical Durability
- 1000000 cycles
- Cad Overall Depth
- 59 mm
- [Ie] Rated Operational Current Ac
- 1.8 A 690 V AC-3 3 phases IEC 947-3 || 2.8 A 500 V AC-3 3 phases IEC 947-3 || 2.8 A 690 V AC-23A 3 phases IEC 947-3 || 3.3 A 400 V AC-3 3 phases IEC 947-3 || 3.8 A 500 V AC-23A 3 phases IEC 947-3 || 4.6 A 230 V AC-3 3 phases IEC 947-3 || 4.8 A 400 V AC-23A 3 phases IEC 947-3 || 5.6 A 230 V AC-23A 3 phases IEC 947-3 || 1 A 500 V AC-15 IEC 947-5-1 || 2 A 400 V AC-15 IEC 947-5-1 || 3 A 230 V AC-15 IEC 947-5-1
Number Of Steps3
Net Weight0.155 kg
Cad Overall Height50 mm
Electrical Connectioncaptive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
Maximum Operating Rate2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1
Contact Operationslow-break
Cad Overall Width45 mm
Rated Operational Power In W10500 W AC-21, 500...660 V 3 phases IEC 947-3 || 1100 W AC-3, 230 V 3 phases IEC 947-3 || 1500 W AC-23A, 230 V 3 phases IEC 947-3 || 1500 W AC-3, 400 V 1 phase IEC 947-3 || 1500 W AC-3, 400 V 3 phases IEC 947-3 || 1500 W AC-3, 500 V 3 phases IEC 947-3 || 1500 W AC-3, 690 V 3 phases IEC 947-3 || 2200 W AC-23A, 400 V 3 phases IEC 947-3 || 2200 W AC-23A, 500 V 3 phases IEC 947-3 || 2200 W AC-23A, 690 V 3 phases IEC 947-3 || 4800 W AC-21, 230 V 3 phases IEC 947-3 || 600 W AC-3, 230 V 1 phase IEC 947-3 || 8300 W AC-21, 400 V 3 phases IEC 947-3
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Standards
- IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013
- Overvoltage Category
- class II IEC 536 || class II NF C 20-030
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Product CertificationsCSA 240 V 3 hp 3 phases 2 || UL 240 V 0.33 hp 1 phase 2 || CSA 240 V 1 hp 1 phase || UL 240 V 1 hp 3 phases
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071103EN_V1
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
