Schneider Electric K10C003NCH Harmony K Cam Stepping Switch, 1 Pole, 10A, 30x30mm, 3 Steps
- MPN: K10C003NCH
- PPN: SCH-K10C003NCH
CAD
$80.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

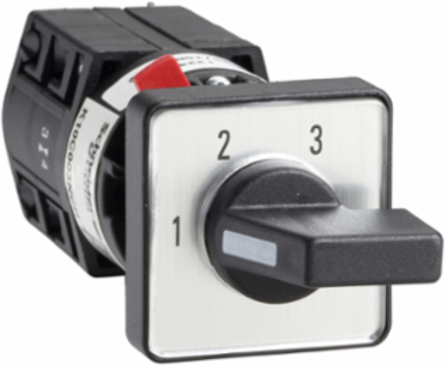

This Harmony K10 cam stepping switch has 1 pole (1P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 2 - 3" marking to indicate the position of the switch. This metal head cam stepping switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony K
- Presentation Of Legend
- with metallic, 1 - 2 - 3 black
- Product Or Component Type
- complete cam switch
- Cam Switch Function
- stepping switch
- Type Of Operator
- black handle
- Cam Switch Head Type
- with front plate 30 x 30 mm
- Poles Description
- 1P
- Return
- without
Fixing ModeØ 16 or 22 mm hole
Ip Degree Of Protectioncontact block: IP20 || operating head: IP65 conforming to IEC 60529
[Ith] Conventional Free Air Thermal Current10 A
Component NameK10
Switching Positionsright: 270° - 330° - 30°
Product Mountingfront mounting
Rotary Handle Padlockingwithout
Off Positionwithout Off position
Complementary
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Net Weight
- 0.045 kg
- Cad Overall Height
- 30 mm
- Electrical Connection
- captive screw clamp terminals 2 x 1.5 mm²
- [Ui] Rated Insulation Voltage
- 440 V 3)IEC 60947-1
- Mechanical Durability
- 1000000 cycles
- [Ie] Rated Operational Current Dc
- 10 A 24 V resistive || 0.3 A 220 V resistive || 0.7 A 110 V resistive
- Cad Overall Depth
- 88 mm
- [Ie] Rated Operational Current Ac
- 10 A 400 V AC-1 || 10 A 400 V AC-21A || 3 A 240 V AC-15 || 6 A 120 V AC-15
Number Of Steps3
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Switching Angle60 °
Electrical Durability100000000 cycles
Contact Operationslow-break
Rated Power In Hp0.33 hp 110/120 V AC, 1 phase || 0.75 hp 220/240 V AC, 1 phase
Cad Overall Width30 mm
Rated Operational Power In W370 W AC-23A, 110/120 V 1 phase || 750 W AC-23A, 220/240 V 1 phase
Environment
- Ambient Air Temperature For Operation
- -20-55 °C
- Standards
- CENELEC EN 50013 || EN/IEC 60947-3 || EN/IEC 60947-5-1
- Electrical Shock Protection Class
- class II IEC 60536
Product CertificationscULus
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
