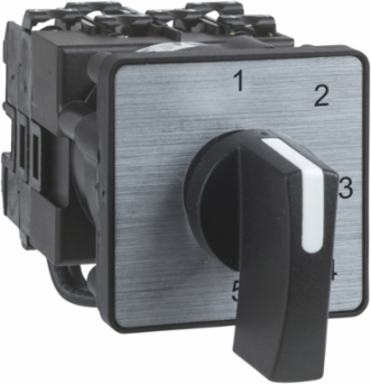

Schneider Electric K1E005NLH Cam Stepping Switch, Plastic, 1 Pole, 5 Steps, 12A, 45x45mm
- MPN: K1E005NLH
- PPN: SCH-K1E005NLH
CAD
$85.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This cam stepping switch from Schneider Electric is an essential component for various automation and control applications. Constructed from durable plastic, it offers reliable performance with its one-pole design and five distinct steps. Capable of handling up to 12A, this switch is designed for seamless integration into your systems, fitting neatly into a 45x45mm panel space. Its robust construction ensures longevity, making it a vital choice for efficient operation in sensor and switch applications.
Documentation & Downloads
Specifications
Additional
- Amperage
- 12 A
- Rated Operational Current AC
- up to 5.6 A depending on voltage and phase IEC 947-3 and IEC 947-5-1
- Short-circuit Protection
- 16 A cartridge fuse gG
- Rated Impulse Withstand Voltage
- 4 kV isolating, 6 kV IEC 947-1
- Electrical Durability
- 1,000,000 cycles AC-15, AC-21; 500,000 cycles AC-23, AC-3
- Switching Angle
- 45°
- Number of Steps
- 5
- Positive Opening
- Yes
- Panel Cutout Size
- 45 x 45 mm
- Net Weight
- 0.16 kg (0.35 lb)
- Fixing Mode
- Multifixing
- Presentation of Legend
- Metallic, black 1 - 2 - 3 - 4 - 5
- IP Degree of Protection
- IP40 IEC 60529
- Standards
- IEC 60947-3, IEC 60947-5-1, CENELEC EN 50013
- Protective Treatment
- TC
- Ambient Air Temperature for Operation
- -25 to 55 °C (-13 to 131 °F)
- Shock Resistance
- 30 gn IEC 68-2-27
- Material
- Plastic
Rated Operational Powerup to 10500 W AC-21, various voltages and phases IEC 947-3
Short-circuit Current10,000 A
Rated Insulation Voltage690 V IEC 60947-1
Maximum Operating Rate2.5 cycles/min AC-21, AC-23, AC-3; 8.333 cycles/min AC-15
Mechanical Durability1,000,000 cycles
Poles1P
Contact OperationSlow-break
TypeComplete cam stepping switch with front plate 45 x 45 mm
Dimensions (W x H x D)45 x 45 x 97 mm (1.77 x 1.77 x 3.82 in)
Mounting LocationFront
Type of OperatorBlack rotary handle 35 mm
Off PositionWithout Off position
Electrical ConnectionCaptive screw clamp terminals flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
Product CertificationsCSA, UL
Overvoltage CategoryClass II IEC 536, Class II NF C 20-030
Ambient Air Temperature for Storage-40 to 70 °C (-40 to 158 °F)
Vibration Resistance5 gn 10–150 Hz IEC 68-2-6
SustainabilityGreen Premium, REACh SVHC free, RoHS, Mercury free, Toxic heavy metal free
