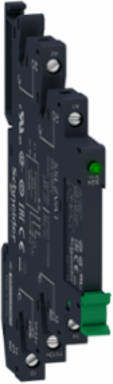

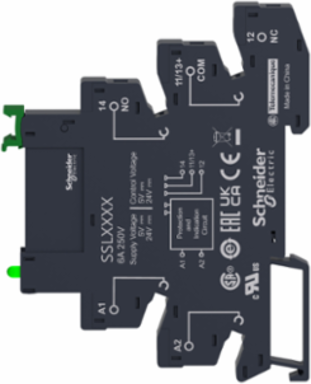

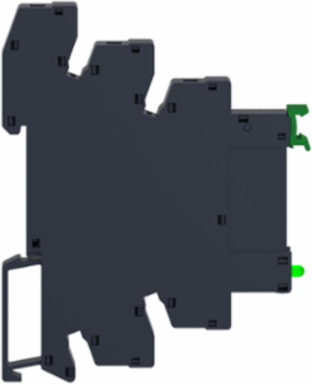

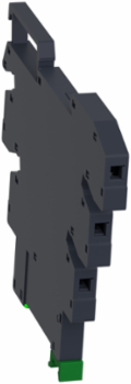

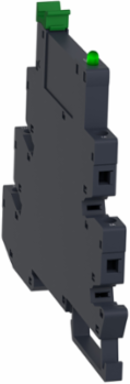

Schneider Electric SSL1A12BDPV Pre-Assembled Solid State Relay, 2A, 16-30V DC Input, 24-250V AC Output
- MPN: SSL1A12BDPV
- PPN: SCH-SSL1A12BDPV
CAD
$31.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 2A zero voltage switching slim relay with 16Vdc to 30Vdc input and 24Vac to 250 Vac output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia

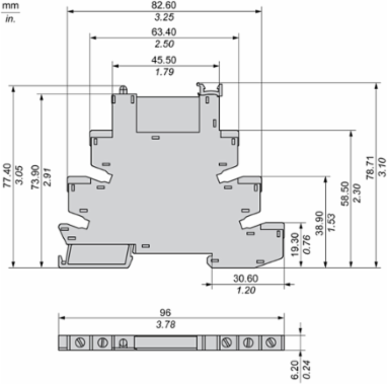

Depth79.5 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.1 V on-state, <1.1 V on-state<1.1 V on-state, <1.1 V on-state
- Line Rated Current
- 2 A
- Maximum Switching Voltage
- 5 V DC turn-off
- Rated Current
- 2 A
Absolute Maximum Voltage600 V AC
Maximum Leakage Current4 mA off-state
Minimum Switching Voltage16 V DC turn-on
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Marking
- cURus, CSA, CE, EAC
- Tightening Torque
- < 0.5 N.m, < 0.5 N.m, 4.4 lb-in
- Certificate Agency
- UL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST
- Connections - Terminals
- flexible cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14), solid cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14), screw connectors
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0034836219, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0017681113, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 10 kg CO2 eq., 10.4722766667
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1405004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- SSL
- Flame Retardance
- V0 conforming to UL 94
- Mounting Support
- screw socket
- Phase
- 1 phase
- Product Or Component Type
- pre-assembled plug-in relay with socket
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP1405004EN
- Pep Verification Date
- 2017-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 96.5 mm
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Package Weight(Lbs)
- 28.000 g
- Warranty (In Months)
- 18
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 39.0461
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 26.596
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Response Time0.5 cycle (turn-on), 0.5 cycle (turn-off)
Control Circuit Voltage16...30 V
[Uc] Control Circuit Voltage16...30 V DC, 16...30 V
Maximum I²T For Fusing285 A².s for 10 ms at 50 Hz, 260 A².s for 8.3 ms at 60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0039479079
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.476003263
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Dielectric Strength2500 V for input/output
Load Current0.07-2 A
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Solid State Relays
Software VersionEIME v5.6
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Database Version2017-03
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh42.7488
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal6.2 mm
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]450.729
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]26.596
Water Pollution (M3) Operational Energy Use [B6]432.124
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-70 °C, -20-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 10.9574795707
- Environmental Disclosure
- ENVPEP1405004EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1405004EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1405004EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2017-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typepre-assembled plug-in relay with socket
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- zero voltage switching, SCR output
- Output Voltage
- 24...250 V AC
Output Switching Modezero voltage switching
Surge Protection And Filtering Attributes
- Surge Current
- 120 A 16.6 ms, 115 A 20 ms
Contractual Warranty Attributes
- Warranty Period
- 18 Months
Warranty18 Months
Input Attributes
- Input Impedance
- 3.43 kOhm
Overview Attributes
- Device Presentation
- complete product
