Schneider Electric XACB3291 Harmony XAC Yellow Pendant Control Station, 2 Push Buttons, IP65

MPN: XACB3291
PPN: SCH-XACB3291
UNSPSC: 39121561

$785.89

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

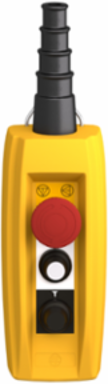

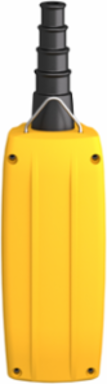

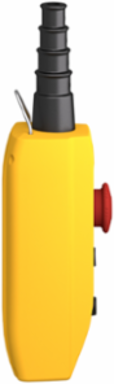

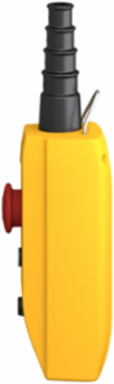

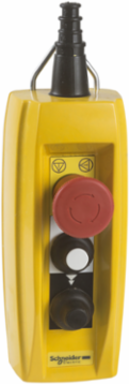

This Harmony XAC, yellow pendant station for hoist motor with pistol grip has 2-speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It offers movement in 2 speeds (low and high) for each movements. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Features

Impact- and stain resistant enclosure for a sustained appearance despite rough usage conditions
Eliminates the need to drill multiple 22mm holes in the machine and system
Yellow enclosure, favoring visual contrast and visibility in dark conditions
Offer movement in 2 speeds (low and high) for each movements
Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia

Weight	990 g

Complementary Attributes

Rated Operational Power In W	2200 W AC-4 400 V IEC 60947-3 appendix A2200 W AC-3 240 V IEC 60947-3 appendix A, 2200 W AC-3 400 V IEC 60947-3 appendix A, 2200 W AC-4 240 V IEC 60947-3 appendix A
Ui Rated Insulation Voltage	emergency stop contact 400 V 3)IEC 60947-1600 VCSA

Rated Power In Hp	2 hp 240 V, CSA3 hp 600 V, CSA5 hp 400 V, CSA
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Button Type	stop push-button Ø 40 mm 3 NC latching, first push-button 2-pole raise, slow-fastsecond push-button 2-pole lower, slow-fast
Terminal Identifier	(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Terminals Description Iso N°1	(51-52-54)OC, (61-62-64)OC, (43-44)NO, (33-34)NO, (13-14)NO, (23-24)NO, (51-52-54)OC, (61-62-64)OC, (43-44)NO, (33-34)NO, (13-14)NO, (23-24)NO
Carbon Footprint Of The Distribution Phase A4	0.2009, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0047879231, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Distribution Carbon Footprint	0.2009
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Cable Entry	rubber sleeve with stepped entry 10-22 mm
Control Station Application	control of 2-speed hoist motor
Control Station Type	double insulated
Electrical Circuit Type	power circuit
Enclosure Type	complete ready for use
Mechanical Interlocking	with mechanical interlocking
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	pendant control station
Range Of Product	Harmony XAC
Shock Resistance	100 gn IEC 60068-2-27
Sustainable Packaging	No
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Control Station Color	yellow
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Short Circuit Protection	10 A fuse protection cartridge aM
Functional Unit Description	XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
Functional Unit Unit	Unit
Recyclability Potential In %	32

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	300000 cycles AC-4, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A500000 cycles AC-4, 1500 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A800000 cycles AC-4, 1500 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A300000 cycles AC-3, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A, 300000 cycles AC-3, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A, 300000 cycles AC-4, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A500000 cycles AC-3, 1500 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A, 800000 cycles AC-3, 1500 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A
Connections Terminals	screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Terminals Description Iso N°2	(31-32)NC, (11-12)NC, (21-22)NC, (31-32)NC, (11-12)NC, (21-22)NC
Carbon Footprint Of The End Of Life Phase C1 To C4	0.9 kg CO2 eq., 0.8674615385
Carbon Footprint Of The Manufacturing Phase A1 To A3	5 kg CO2 eq., 4.7551538462
Local Data Status	Publishable
Return Indicator	N
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Operation	snap action
Control Station Composition	2 push-buttons + 1 emergency stop
Device Short Name	XACB
Enclosure Material	glass reinforced polyester
Mechanical Durability	1000000 cycles
Operating Force	17-17 N push-button40-40 N emergency stop
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TH
Returnability	No
Software Version	EIME v5.9.4
Total Lifecycle Carbon Footprint	6 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Certificate Agency	CSA type 4
Ithe Conventional Enclosed Thermal Current	12 A
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	5.8283033077
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	XESD1291 for reversing operationXACS499 for emergency stop
Pep Code	ENVPEP0709005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP0709005EN
Ip Degree Of Protection	IP65 conforming to IEC 60529
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2022-11-01
Psr Version	PSR-0005-ed2-2016 03 29
