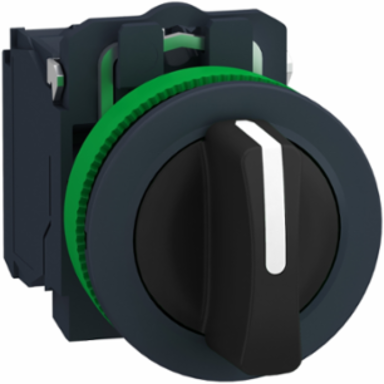

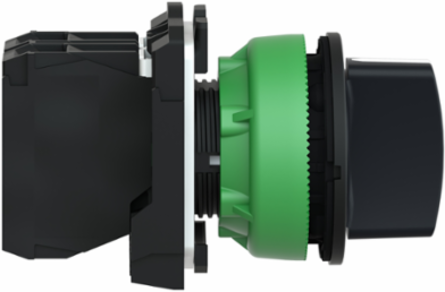

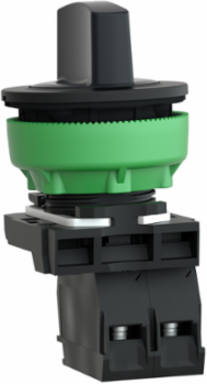

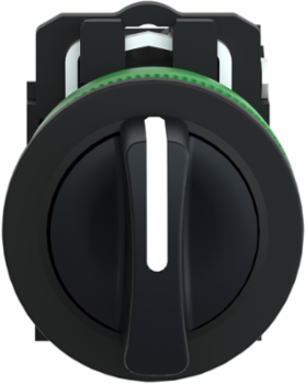

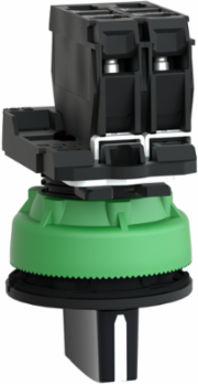

Schneider Electric XB5FD53 Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, 3 positions, spring return to center, 2NO

  • MPN: XB5FD53
  • PPN: SCH-XB5FD53
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $85.18

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, 3 positions, spring return to center, 2NO

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, France
    Depth73 mm

    Physical Attributes

    Cap Operator Or Lens Color
    black

    Complementary Attributes

    Ie Rated Operational Current
    3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Uimp Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Ui Rated Insulation Voltage600 V 3)IEC 60947-1

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Bezel Material
    dark grey plastic, dark grey plastic
    Contacts Material
    silver alloy (Ag/Ni)
    Customizable
    no, 1
    Electrical Reliability
    λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    Operator Profile
    black standard handle, unmarked
    Protective Treatment
    TH
    Shape Of Signaling Unit Head
    round
    Terminals Description Iso N 1

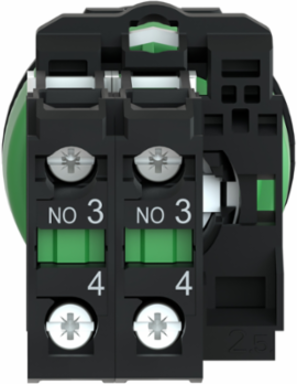

    (13-14)NO, (23-24)NO, (13-14)NO, (23-24)NO
    Type Of Operator
    to centre spring return
    Connections Terminals
    screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    Carbon Footprint Of The Distribution Phase A4
    0.0071920869, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A5
    0 kg CO2 eq., 0.0187294059
    Carbon Footprint Of The Use Phase B2 B3 B4 B6
    0.2 kg CO2 eq., 0.16148
    Operator Pos Information
    3 positions +/- 45°
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Product Repair Index Dam Doc
    XB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Average Percentage Of Recycled Metal Content
    16 %
    Compatibility Code
    XB5
    Device Short Name
    XB5F
    Gcr Bridge
    XB5FDCUST03
    Mechanical Durability
    1000000 cycles
    Positive Opening
    without
    Product Repair Index
    A
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity
    1
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    0.7 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Ith Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    Type Of Operator 3 Type Of Operator
    spring return
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential, In %
    23
    Width Nominal
    36.6 mm
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    2.4682
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    3.3586
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Contact Operationslow-break
    Contacts Usagestandard contacts
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Mounting Diameter30.5 mm
    Product Or Component Typeselector switch
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Cap Operator Or Lens Colorblack
    Ie Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Carbon Footprint Of The End Of Life Phase C1 To C40.0966163255, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A30.4 kg CO2 eq., 0.3745257114
    Contacts Composition2 NO
    Certificate AgencyUL Listed, CSA
    Local Publishable Date2026-01-12
    Stocking FlagN
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2308008EN
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content27 %
    Contacts Type And Composition2 NO
    Electrical Shock Protection Classclass II conforming to IEC 60536
    Head Typebuilt-in-flush
    Operator Position Information3 positions +/- 45°
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony XB5
    ReturnabilityYes
    Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Sustainable PackagingYes
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
    Warranty In Months18
    Pep CodeENVPEP2308008_V1-EN
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Height Nominal42 mm
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2.9446
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2.9446
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.9446

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67, IP69, IP69K
    Take Back
    No
    Recycled Metal Content At Cr Level
    16 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.6585435297
    Environmental Disclosure
    ENVPEP2308008_V1-EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2308008_V1-EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2308008EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    selector switch
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC001029
    ETIM 9EC001029

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
