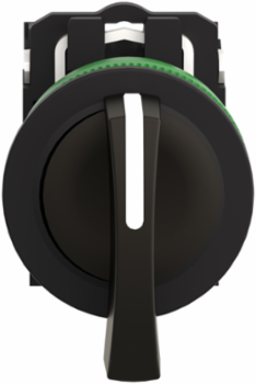

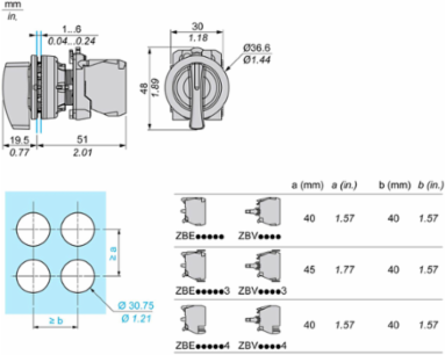

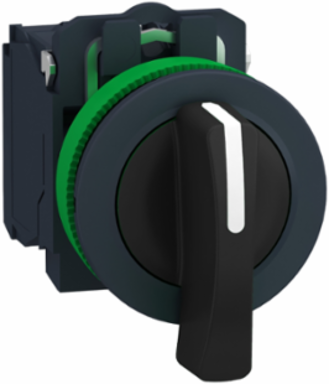

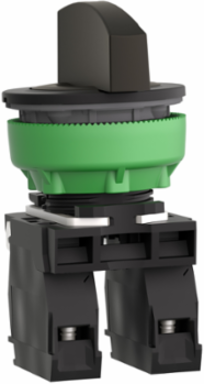

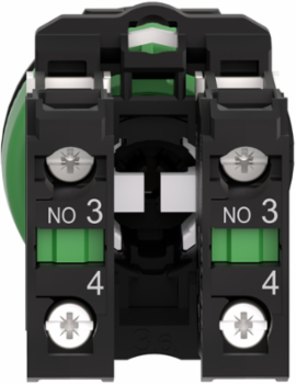

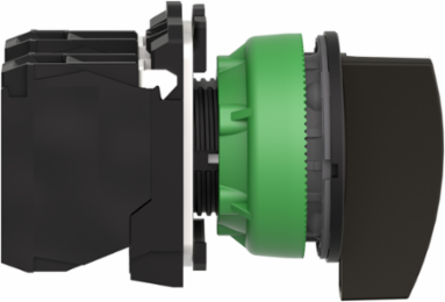

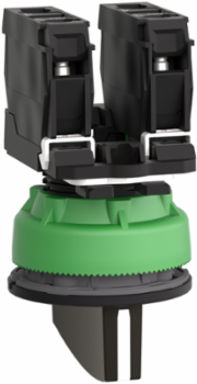

Schneider Electric XB5FJ53 Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO

Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
  • MPN: XB5FJ53
  • PPN: SCH-XB5FJ53
  • UNSPSC: 39122217

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$85.18/ EA

Description

Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO

Features

  • Quick and easy assembly and disassembly
  • Robustness to withstand harsh environments
  • With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
  • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
  • Excellent mechanical connection with operator head
  • A large set of accessories to customize your panels
  • Allows a clearer view of control features.
  • Provides better perceived quality of machines and panels
  • Innovative design without compromise on cost.
  • Delivers extremely robust performance even in severe environments

Specifications

Physical Attributes

Cap Operator Or Lens Color
black

Conformance Attributes

Product Certifications
UL Listed, CSA
StandardsIEC 60947-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1

Important Information Attributes

Customizable
1, no
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ie Rated Operational Current2
3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C4
0.1 kg CO2 eq., 0.0800157736
Carbon Footprint Of The Manufacturing Phase A1 To A3
0.4 kg CO2 eq., 0.4012342642
Connections Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Ie Rated Operational Current5
3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Local Publishable Date
2026-01-12
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2308008EN
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
ROHS EUR Status
Compliant
ROHS EUR Full Compliance Status Id
PRO_ACTIVE_COMPLIANCE
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Average Percentage Of Recycled Metal Content
16 %
Bezel Material
dark grey plastic
Compatibility Code
XB5
Contacts Material
silver alloy (Ag/Ni)
Contacts Usage
standard contacts
Electrical Shock Protection Class
class II conforming to IEC 60536
Head Type
built-in-flush
Mounting Diameter
30.5 mm
Operator Profile
black long handle, unmarked
Positive Opening
without
Product Or Component Type
selector switch
Protective Treatment
TH
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Head
round
Sustainable Packaging
Yes
Total Lifecycle Carbon Footprint
0.7 kg CO2 eq.
Vibration Resistance
5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Ith Conventional Free Air Thermal Current2
10 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage2
6 kV IEC 60947-1
Medium Desc
Selector switch, Harmony XB5, flush mounted, plastic, black, 30mm, long handle, 3 positions, spring return to center, 2NO
Product Kit Identifier
N
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional Unit Description
This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.004 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Energy Model Manufacturing A1 A3 2
Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Ith Conventional Free Air Thermal Current5
10 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage5
6 kV IEC 60947-1
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Terminals Description ISO N 1(13-14)NO, (23-24)NO, (13-14)NO, (23-24)NO
Carbon Footprint Of The Distribution Phase A40.0077112, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0090909509, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60.2 kg CO2 eq., 0.15828
Connections Terminals3screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticYes
Return IndicatorY
Average Percentage Of Recycled Plastic Content27 %
Cap Operator Or Lens Colorblack
Contact Operationslow-break
Contacts Type And Composition2 NO
Device Short NameXB5F
GCR BridgeXB5FJCUST03
Mechanical Durability1000000 cycles
Operator Position Information3 positions +/- 45°
Package Weight Lbs58.968 g
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorto centre spring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2600 V 3)IEC 60947-1
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Stocking FlagN
Pep CodeENVPEP2308009_V1-EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Global Commercial StatusCommercialised
Ui Rated Insulation Voltage5600 V 3)IEC 60947-1

Environment Attributes Main

Take Back
No, Nej
IP Degree Of Protection
IP66 IEC 60529, IP67, IP69, IP69K
ROHS Exemption Information
Yes
Recycled Metal Content At Cr Level
16 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
0.6563321887
Ambient Air Temperature For Storage
-40-70 °C
Environmental Disclosure
ENVPEP2308009_V1-EN
Packaging Without Single Use Plastic
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2308008EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2308009_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
selector switch
Range Of ProductHarmony XB5

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Depth
73 mm

Overview Attributes

Device Presentation
complete product
