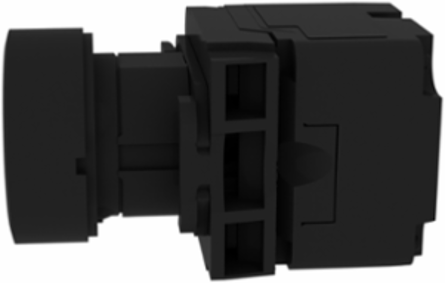

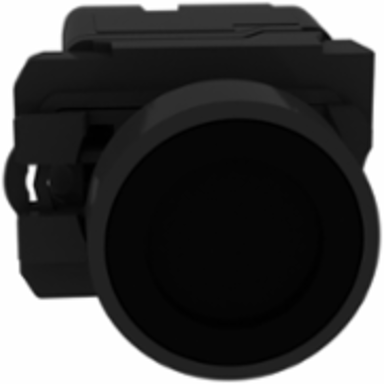

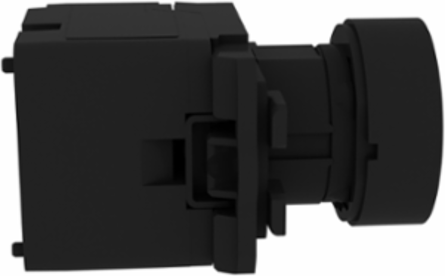

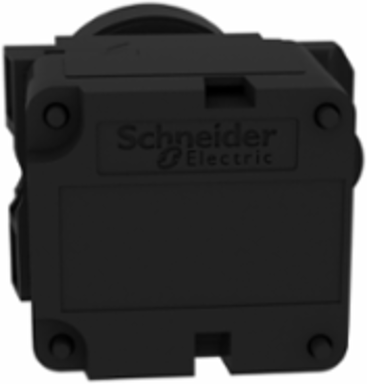

Schneider Electric XB5RFB01 Harmony XB5R Wireless Push Button 22mm, 24V DC, Plastic
Schneider Electric XB5RFB01 Harmony XB5R Wireless Push Button 22mm, 24V DC, Plastic
- MPN: XB5RFB01
- PPN: SCH-XB5RFB01
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$215.45/ EA
Description

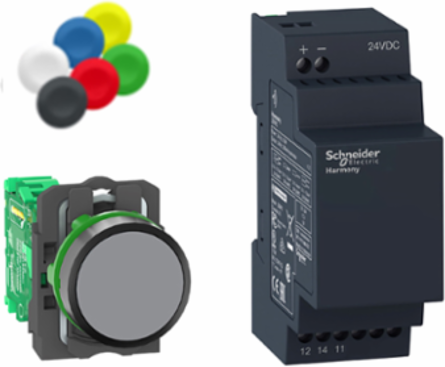

This Harmony XB5, flush black wireless push button and receiver unit set is supplied with a 24V DC input. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes. The button is easily installed into standard 22mm diameter panel cut-outs, while the receiver is DIN rail mountable. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It provides robust wireless communications, for guaranteed operation even in the most electromagnetically disturbed environments. Its simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. It is easily installed into standard 22mm diameter cut-outs. It complies with most radio emission standards, for a guaranteed comfort during design and project approval.
Specifications
Environment
- Product Certifications
- UL || C-Tick || GOST || CSA || CCC
- Marking
- CE
StandardsIEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || UL 508
Radio AgreementSRRC || ICASA || RSS || ANATEL || FCC || ARIB T66
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP101106EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1103010EN
Complementary
- [Us] Rated Supply Voltage
- 24 V
- Control Type
- wireless and batteryless push-button Ø 22 mm assembled on fixing collar
- Kit Composition
- 1 transmitter || 1 set of caps || 1 receiver || 1 fixing collars || 1 22 mm || 1 push-button head 22 mm
- Antenna Gain
- 0 dBi
- Number Of Channels
- 1
- Compatibility Code
- XB5R
- Bandwidth
- 5-5 MHz
[Us] Rated Supply Voltage24 V DC
Modulation TechniqueO-QPSK
Communication Port ProtocolZigbee IEEE 802.15.4
Max Power Consumption In W1 mW
Type Of Receivernon-programmable receiver 1 relay)
Customizableno
Specifications
- Antenna Type
- omnidirectional
- Product Or Component Type
- wireless and batteryless package
- Level Or Class
- 5M00G7W
- Transmission Frequency
- 2405 MHz transmitter || 2405 MHz receiver
Range Of ProductHarmony XB5R
Head Materialplastic
Device Short NameXB5R
