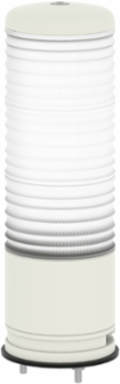

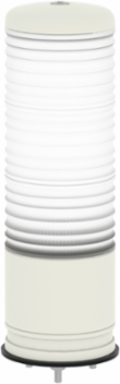

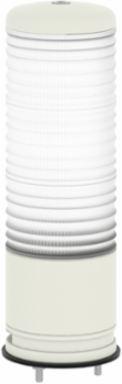

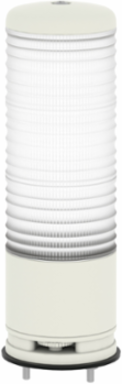

Schneider Electric XVC6B35SK Monolithic pre wired tower light, Harmony XVC, plastic, red orange green, 60mm, base mounting, steady or flashing, buzzer, IP54, 24V AC DC
Schneider Electric XVC6B35SK Monolithic pre wired tower light, Harmony XVC, plastic, red orange green, 60mm, base mounting, steady or flashing, buzzer, IP54, 24V AC DC
- MPN: XVC6B35SK
- PPN: SCH-XVC6B35SK
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$392.09/ EA
Description

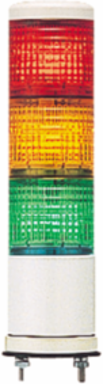

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green) and a base for mounting on horizontal surface. It also features a buzzer with continuous or intermittent tone and adjustable sound level from 70db to 85db at 1 m, + flashing light. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°. It features LED for steady or flashing light source, and it can be supplied with 24 V AC/DC. Its protection index is IP54. It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover. It weighs 300g and it is 201mm high. It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. It is CE and UL certified. It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.
Specifications
Environment
- Product Certifications
- UL
- Standards
- EN/IEC 61000-6-4 || EN/IEC 61000-6-3 || EN/IEC 61000-6-2
- Ambient Air Temperature For Storage
- -35-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-10-50 °C
Ip Degree Of ProtectionIP54 flat surface installation EN/IEC 60529
Electrical Shock Protection Classclass II EN/IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904008EN
- Circularity Profile
- ENVEOLI1904008EN
Mercury FreeYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 200.8 mm
- Fundamental Frequency
- 2.23 kHz
- Cable Length
- 850 mm
- Net Weight
- 0.3 kg
- Awg Gauge
- AWG 22
- Product Mounting
- on base
[Uimp] Rated Impulse Withstand Voltage0.8 kV
Flashing Frequency1 Hz
MarkingCE
Current Consumption115 mA
Cable Cross Section0.33-0.33 mm²
Materialpolycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover
Specifications
- Range Of Product
- Harmony XVC6
- Light Source
- LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green
- Component Name
- XVC
- Noise Level
- 70-85 dB continuous or intermittent tone)1 m
- Supply Circuit Type
- AC/DC
Mounting Diameter60 mm
Product Or Component Typecomplete pre-wired monolithic tower light
[Us] Rated Supply Voltage24 V
Beacon Or Indicator Bank Unit Type3 illuminated units
Sound Signallingbuzzer
