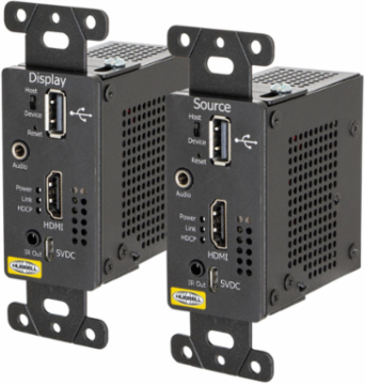

Hubbell Premise Wiring ISFHD5BK HDBaseT 4K HDMI Extender, 328 ft Range, Black, Decorator Style

MPN: ISFHD5BK
UPC: 662620343228
PPN: HBL-ISFHD5BK
UNSPSC: 39121444

$2426.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

110 HDBaseT Extender, Transmits 4K HDMI, USB, 3.5mm Audio, IR, One Gang Decorator, Black, Transmit and Receive Modules

Features

Locate a display device up to 328 feet (100m) away
Terminate with one Category 6a UTP or Shielded Cable
110 Punchdown Termination Reduces Installation Time
Source & Display Module can both be installed in back boxes
Transmit 4K HDMI and USB up to 328 feet over a single CAT6A UTP cable.

Specifications

Key Specifications

Country of Origin	China
Industry Standard(s)	Listed UL AZOT/7
Application	High Speed HDMI (18 Gbps), USB 2.0 High Speed
Connection	HDMI, USB, IR, 3.5mm audio
Special Features	Transmit 4K HDMI and USB up to 328 feet over a single CAT6A UTP cable.
Type	HDBaseT
Mounting Type	Decorator
Class Code	A60
Harmonization Code	8525503040
Sub Class Code	A60A540
Base Unit of Measure	EA
Carton - Gross Weight per Pack	0.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	10
Pallet Height	50.000 in
Pallet Weight	1241.500 lb.
NAICS Code	3359326104

Width	3.500 in
Size	4.75 X 3.5 X 3
Color	Black
Mounting	Decorator
Standard	Listed UL AZOT/7
General Literature Asset 1 Display Text	iStation HDBaseT 3.0 In-Wall HDMI Extender
Style	Extenders
Freight Class Code	06111002
Image Actual Or Representative	A
Series	ISFHD
BOX SIZE	5.000x16.000x7.250 (in)
Carton - Number of Sub Packs	10
Carton - SCC-14 Next Lower Level Sub Pack	00662620343228
Case Weight	8.900 lb.
Pallet Length	48.000 in
Pallet Width	40.000 in
