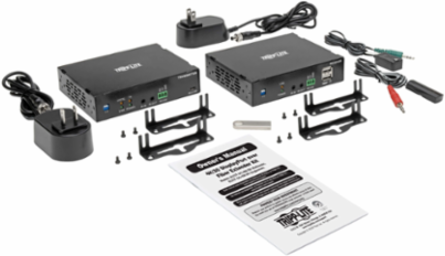

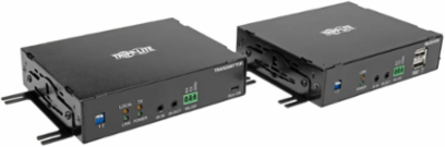

Tripp Lite B127F-1A1-MM-DD DisplayPort Over Fiber Extender Kit - 4K, 985 ft, TAA-Compliant
- MPN: B127F-1A1-MM-DD
- UPC: 037332239167
- PPN: TRP-B127F-1A1-MM-DD
CAD
$1077.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
DisplayPort Over Fiber Extender Kit - 4K, 985 ft, TAA-Compliant
Features
- Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
- Supports uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio
- Meets DisplayPort 1.2a standards, including 4:4:4 subsampling for HDR televisions
- Transmitter’s local HDMI port features multi-resolution technology allowing displays with varying resolutions to be connected without affecting the Displayport's 4K 30Hz signal.
- Plug-and-play operation with no software required for easy, immediate installation
- 1-year limited warranty
- DisplayPort Extender for Digital Signage or Displaying Video in Schools or Trade Show Booths
- Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color
- DIP Switches Extend Your Choice of USB, IR or RS-232 Signals
- Plug-and-Play Operation for Quick Setup and Immediate Use
- TAA-Compliant for GSA Schedule Purchases
Documentation & Downloads
Specifications
Additional
| Max Supported Video Resolution | 3840 x 2160 (4K) @ 30 Hz |
|---|---|
| DisplayPort Specification | 1.2a |
| Audio Specification | True uncompressed 8-channel LPCM, AC-3, DTS digital audio |
| HDR Support | Yes |
| Wavelength | 850 nm |
| Power Over Cable (PoC) Support | No |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Relative Humidity | 0% to 85%, Non-Condensing |
| External Power Supply Output | 5V, 2A |
| Side A - Connector 1 | (2) 3.5MM (FEMALE); MICRO-USB B (FEMALE) |
| Side B - Connector 1 | (2) 3.5MM (FEMALE); (2) USB A (FEMALE) |
| Material | Metal |
| Receiver Unit Weight | 0.5 lbs |
| Transmitter Unit Weight | 0.5 lbs |
| Color | Black |
| External Power Supply Plugs | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America |
| EDID Compatible | Yes |
| IR Remote Extension Support | Yes |
| Warranty | 1-year limited |
| Signal Range | 985 ft (300 m) |
|---|---|
| HDCP Specification | 2.2 |
| Chroma Sub Sampling | 4:4:4 |
| Technology | DisplayPort; HDMI; HDR |
| Mode Type | Multimode |
| HDMI Specification | 2.0 |
| Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
| External Power Supply Input | 100-240V, 50/60 Hz, 0.35A |
| External Power Supply Cord Length | 4.5 ft |
| Side A - Connector 2 | DISPLAYPORT (FEMALE); HDMI (FEMALE); LC DUPLEX (FEMALE) |
| Side B - Connector 2 | DISPLAYPORT (FEMALE); LC DUPLEX (FEMALE) |
| Receiver Unit Dimensions | 1.06 x 4.53 x 2.46 in |
| Transmitter Unit Dimensions | 1.06 x 4.53 x 2.46 in |
| External Power Supply DC Barrel Connector Specs | OD: 5.5 x 2.1 x 7.5 mm, Positive Pin, Negative Sleeve |
| Rackmountable | Yes |
| RS-232 Serial Extension Support | Yes |
| Driver Required | No |
| Certifications | TAA; CE; FCC; REACH; RoHS; CCC; GS; TUV; UL; cUL |
