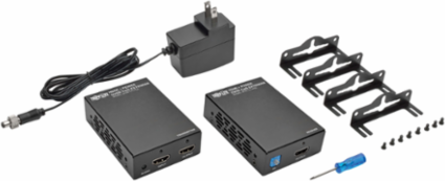

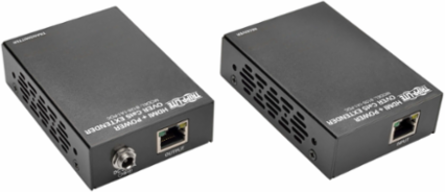

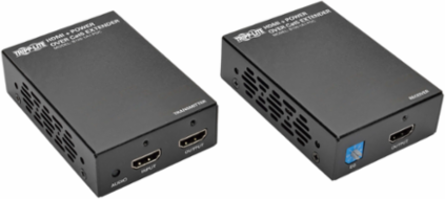

Tripp Lite B126-1A1-POC HDMI Extender Kit, 1080p @60Hz, Cat5e/6, Up to 125 ft.
- MPN: B126-1A1-POC
- UPC: 037332193117
- PPN: TRP-B126-1A1-POC
CAD
$484.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Transmitter and receiver work in tandem to extend an HDMI signal via Cat5e/6/6a cable to a projector, monitor or television up to 125 ft. away. Ideal for digital signs, classrooms, churches, offices and retail settings.
Features
- Built-in Power over Cable (PoC) technology powers the receiver
- Supports high-definition video resolutions up to 1080p (@ 60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Built-in equalization control lets you adjust monitor image
- Plug and play—no software or drivers to install
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Max Supported Video Resolution
- 1080p @ 60Hz
- Audio Channels
- 7.1 Channel Surround Sound (Multi-Channel or PCM)
- Power Over Cable (PoC) Support
- Yes
- HDCP Specification
- 1.4
- External Power Supply Input
- 100-240V / 50/60Hz / 0.5A
- Connector Plating
- Nickel
- Receiver Unit Dimensions (hwd / cm.)
- 2.6 x 9.2 x 6.4
- Transmitter Unit Dimensions (hwd / cm.)
- 2.6 x 9.2 x 6.4
- Transmitter Unit Weight
- 0.2 lbs (0.09 kg)
- Recommended Category Cable
- Cat5e/6/6a, 24 AWG solid-wire
- External Power Supply DC Barrel Connector
- 5.5 x 2.1 x 7.5 mm, Positive Pin, Negative Sleeve
- Operating Temperature Range
- 14 to 167 F (-10 to 75 C)
- Relative Humidity
- 0% to 85%, Non-Condensing
- Color
- Black
Max Supported Color Depth24-bit True Color
Signal Range125 ft
HDMI Specification1.4
Voltage Compatibility (VAC)100; 110; 120; 125; 127; 200; 208; 220; 230; 240
External Power Supply Output5V / 2A
Receiver Unit Dimensions (hwd / in.)1 x 3.6 x 2.5
Transmitter Unit Dimensions (hwd / in.)1 x 3.6 x 2.5
Receiver Unit Weight0.2 lbs (0.09 kg)
RackmountableYes
External Power Supply Cord Length4.5 ft
External Power Supply PlugNEMA 1-15P North America
Storage Temperature Range-4 to 176 F (-20 to 80 C)
MaterialSECC Steel
CertificationsFCC, RoHS, UL, cUL, REACH
