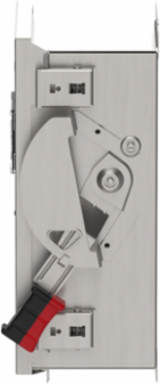

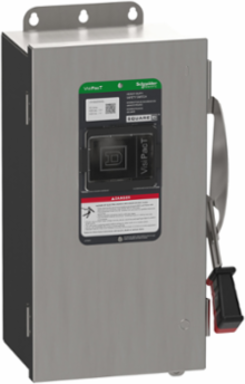

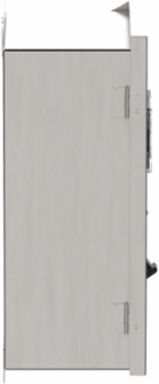

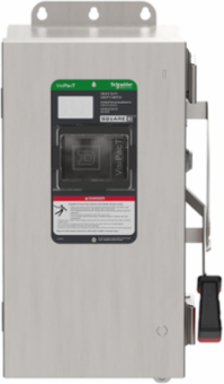

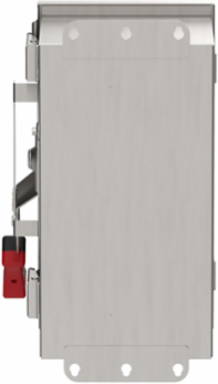

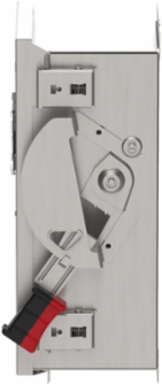

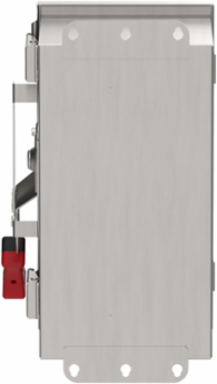

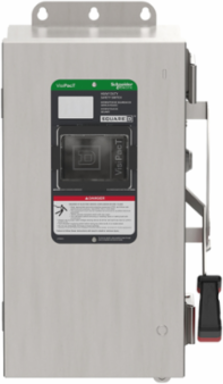

Square D VH362DSGL Safety switch, heavy duty, fused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs






Square D VH362DSGL Safety switch, heavy duty, fused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs
- MPN: VH362DSGL
- PPN: SCH-VH362DSGL
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1846.63/ EA
Description
Safety switch, heavy duty, fused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs
Specifications
Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 4X stainless steel 304
- Product Or Component Type
- Single Throw Safety Switch
- Device Application
- heavy application
- [Ue] Rated Operational Voltage
- 600 V AC/DC
Disconnector Device Typefusible disconnect
[In] Rated Current60 A
Device Compositionfield installed kit available
Number Of Poles3
Complementary

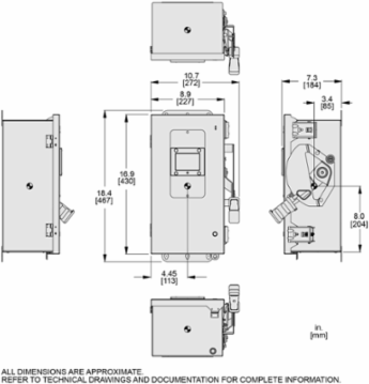

- Height
- 16.93 in
- Tightening Torque
- 50-50 lbf.in AWG 3) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 50-50 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Fuse Type
- H or K || R or J
- Electrical Connection
- lugs

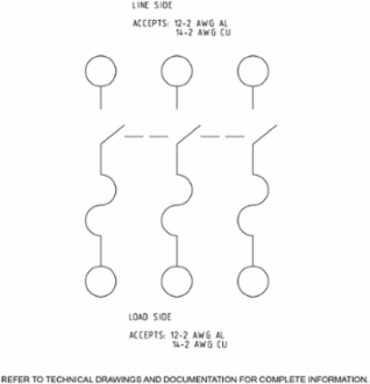

- Wiring Configuration
- 3-wire
- Depth
- 7.26 in
- Short-Circuit Current
- 10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Device Mountingsurface
Condition Of Usesuitable service entrance for USA || suitable service entrance for Mexico
Servicesfactory installation
Awg GaugeAWG 14...AWG 3 copper || AWG 12...AWG 3 aluminum
Width8.92 in
Net Weight10 kg
Offer Sustainability
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP2303036EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Environment
- Product Certifications
- UL listed file E2875
