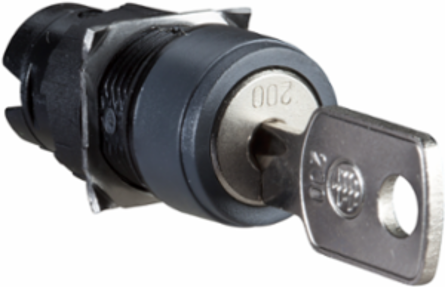

Schneider Electric ZB6AGD Harmony XB6 Key Selector Switch Head 16mm, 3 Positions, IP65
- MPN: ZB6AGD
- PPN: SCH-ZB6AGD
CAD
$58.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed for versatility and operational security, the ZB6AGD Harmony XB6 Key Selector Switch Head by Schneider Electric is an essential component for automation and control applications. This 16mm switch features three distinct positions, allowing you to easily manage complex systems with precision and reliability. With an IP65 rating, it provides robust protection against dust and water, making it suitable for various industrial environments. The thoughtful design ensures seamless integration into your setup, enhancing both user experience and safety in demanding situations.
Documentation & Downloads
Specifications
Additional
- Operator Position Information
- 3 positions
- Key Withdrawal Position
- left-hand
- Vibration Resistance
- +/- 3 mm 2-500 Hz, 5 gn 2-500 Hz IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40 to 70 B0C
- Type Of Keylock
- key 200
- Shape Of Signaling Unit Head
- round
- Nema Degree Of Protection
- NEMA 13, NEMA 4, NEMA 4X UL 50 CSA C22.2 No 94
- Standards
- IEC 60947-5-5, UL 508, JIS C8201-5-1, IEC 60947-5-1, JIS C 852, IEC 60947-1, CSA C22.2 No 14, JIS C8201-1
- Protective Treatment
- TC
- CAD Overall Height
- 18 mm (0.71 in)
Mounting Diameter16 mm (0.63 in)
Shock Resistance30 gn 18 ms, 50 gn 11 ms half sine wave IEC 60068-2-27
Ambient Air Temperature For Operation-25 to 70 B0C
Type Of Operatorstay put
Bezel Materialplastic
Ip Degree Of ProtectionIP65 IEC 60529
Electrical Shock Protection Classclass II IEC 61140
Product CertificationsGOST, CSA, UL, CCC
CAD Overall Width18 mm (0.71 in)
CAD Overall Depth55 mm (2.17 in)
