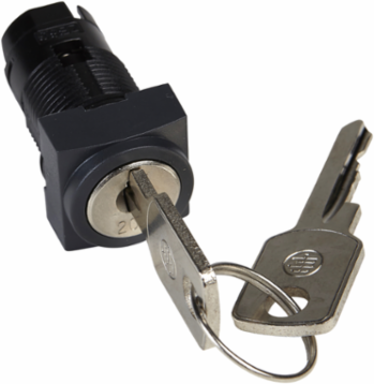

Schneider Electric ZB6CGH Harmony XB6 Square Key Selector Switch Head 16mm, 3 Position, Key 200
- MPN: ZB6CGH
- PPN: SCH-ZB6CGH
CAD
$58.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony ZB6CGH is a square selector switch head, 3-position stay put, key operated Ronis 200. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB6
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- square
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- black key switch
- Device Short Name
- ZB6
Mounting Diameter16 mm
Product Or Component Typehead for key selector switch
Key Withdrawal Positionin any position
Bezel Materialplastic
Operator Position Information3 positions
Type Of Keylockkey 200
Complementary
- Cad Overall Height
- 18 mm
- Cad Overall Depth
- 55 mm
Cad Overall Width18 mm
Environment
- Product Certifications
- GOST || CSA || UL || CCC
- Standards
- IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-5 || JIS C8201-1
- Vibration Resistance
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Nema Degree Of ProtectionNEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
