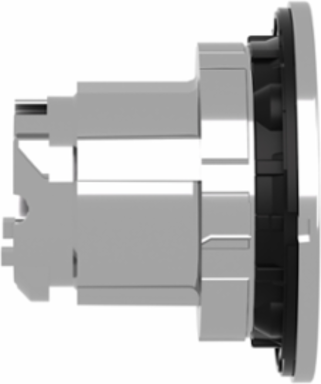

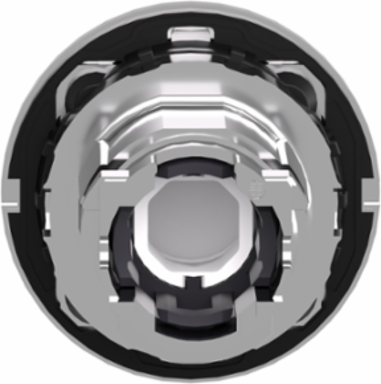

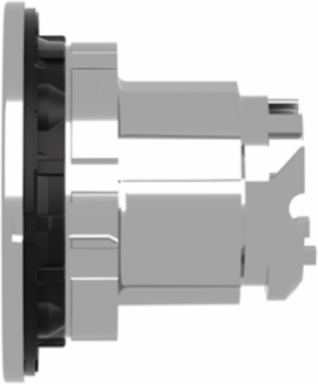

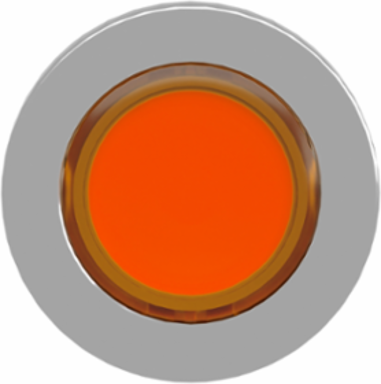

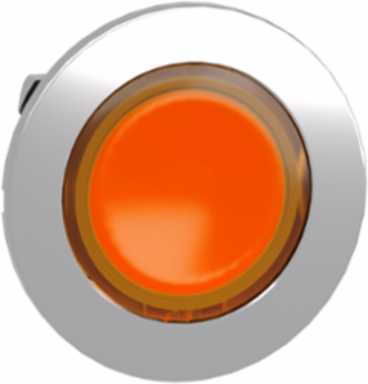

Schneider Electric ZB4FV053 Harmony XB4 30mm Metal Pilot Light Head, Orange, IP66, Universal LED
- MPN: ZB4FV053
- PPN: SCH-ZB4FV053
CAD
$15.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This pilot light head for integral LED provides clear visual feedback on the status of your machines. It is easily installed into a 30.5mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance.
Features
- Engineered as part of the premium Harmony XB4 range, this 30.5mm built-in-flush pilot light head is designed exclusively for seamless integration into standard 30.5mm diameter panel cut-outs. It perfectly mates with Schneider’s Universal LED blocks and standard metal mounting collars, ensuring you don't have to re-engineer your current control layout or worry about component mismatch during routine maintenance or system upgrades.
- Featuring a high-transparency, plain orange lens optimized for integral and universal LED modules, this signaling head maximizes light diffusion for brilliant visual feedback. The vibrant amber indicator cuts through harsh factory floor ambient lighting, enabling machine operators to recognize complex or cautionary machine states at a glance and significantly reducing response times during critical operations.
- The robust round head features a premium chromium-plated metal bezel that delivers exceptional structural integrity and an IK06 impact resistance rating. This high-grade metal construction prevents corrosion and shields internal electronics from industrial vibrations (up to 5 gn) and mechanical shocks (up to 50 gn), guaranteeing an ultra-long service life in high-traffic control panels.
- This component is fully certified and compliant with global industrial safety standards, including UL 508, CSA C22.2 No 14, and EN/IEC 60947-5-1, while carrying CE, CCC, and EAC markings. Rest assured that adding this basic element to your control system fulfills rigorous regulatory demands for automation safety, preventing costly regulatory compliance delays or safety inspection failures.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- with plain lens
- Mounting Diameter
- 30.5 mm
- Shape Of Signaling Unit Head
- round
- Head Type
- built-in-flush
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4F
Range Of ProductHarmony XB4
Product Or Component Typehead for pilot light
Cap/Operator Or Lens Colourorange
Sale Per Indivisible Quantity1
Product Compatibilityuniversal LED
Complementary
- Electrical Composition Code
- P1 front mounting integral LED || P2 front mounting integral LED and transformer
- Cad Overall Height
- 36.6 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Depth
- 31 mm
Net Weight0.058 kg
Device Presentationbasic element
Cad Overall Width36.6 mm
Environment
- Product Certifications
- UL listed || CSA || CCC || EAC
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Overvoltage Category
- class I IEC 60536
Ik Degree Of ProtectionIK06 conforming to IEC 50102
StandardsEN/IEC 60947-5-4 || EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
