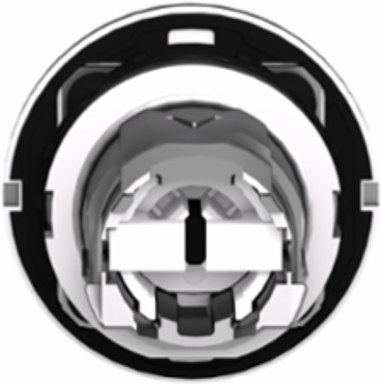

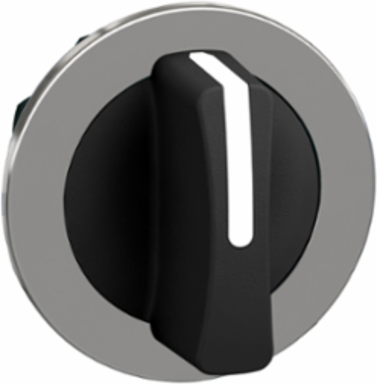

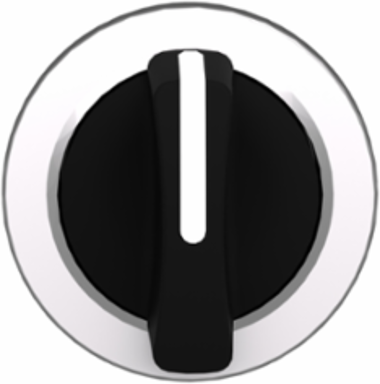

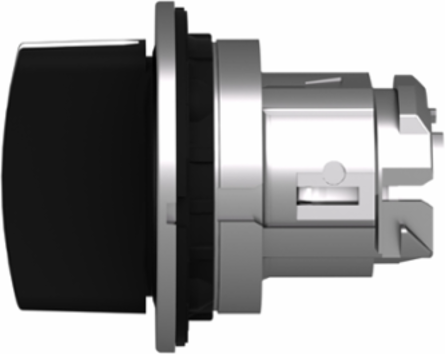

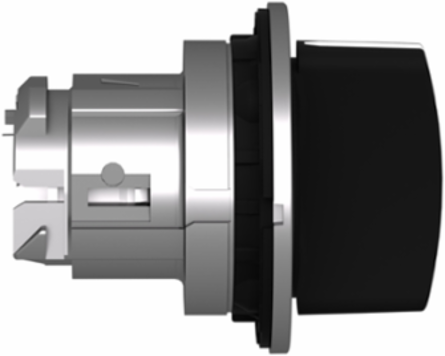

Schneider Electric ZB4FD3 Head for selector switch, Harmony XB4, black handle, flush, 30mm, 3 positions, stay put

Head for selector switch, Harmony XB4, black handle, flush, 30mm, 3 positions, stay put
Head for selector switch, Harmony XB4, black handle, flush, 30mm, 3 positions, stay put
Head for selector switch, Harmony XB4, black handle, flush, 30mm, 3 positions, stay put
Head for selector switch, Harmony XB4, black handle, flush, 30mm, 3 positions, stay put
Head for selector switch, Harmony XB4, black handle, flush, 30mm, 3 positions, stay put
  • MPN: ZB4FD3
  • PPN: SCH-ZB4FD3

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$29.57/ EA

    Description

    This 30.5 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

    Specifications

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1808008EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Circularity Profile
    ENVEOLI1808008EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Specifications

    Range Of Product
    Harmony XB4
    Type Of Operator
    stay put
    Shape Of Signaling Unit Head
    round
    Sale Per Indivisible Quantity
    1
    Operator Profile
    black standard handle
    Device Short Name
    ZB4F
    Mounting Diameter30.5 mm
    Product Or Component Typehead for selector switch
    Head Typebuilt-in-flush
    Bezel Materialchromium plated metal
    Operator Position Information3 positions +/- 45°

    Complementary

    Electrical Composition Code
    C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting
    Cad Overall Height
    36.6 mm
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Cad Overall Width
    36.6 mm
    Net Weight0.078 kg
    Device Presentationbasic element
    Mechanical Durability1000000 cycles
    Cad Overall Depth47 mm

    Environment

    Product Certifications
    UL listed || CSA || CCC || EAC
    Ambient Air Temperature For Operation
    -40-70 °C
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    Ip Degree Of Protection
    IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    Overvoltage Category
    class I IEC 60536
    Ik Degree Of ProtectionIK06 conforming to IEC 50102
    StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    Ambient Air Temperature For Storage-40-70 °C
    Protective TreatmentTH
