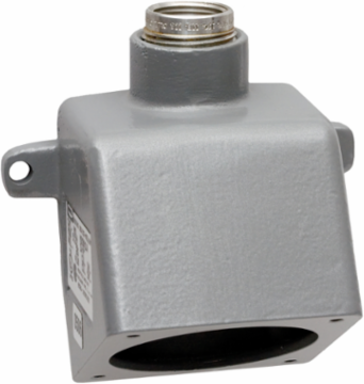

Hubbell Wiring Device-Kellems MB602W Insulgrip 60A 1-1/4 Inch NPT Angled Cast Aluminum Back Box
- MPN: MB602W
- UPC: 783585010748
- PPN: HBL-MB602W
- UNSPSC: 39121332
CAD
$164.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade, Back Box, for 60A 1¼" NPT Hub, Angled, Mounting Screws Included
Features
- Industrial Grade
- Back Box
- For 60A 1 1/4" NPT Hub
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- UL Listed
- Standards - RoHS Compliance Status
- CM
- Cable Entry
- Through Hub
- Number of Outlet
- Accepts 1-Device
- Standard
- UL Listed
- Type
- Angled Back Box
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Display Size
- For 60 Amp Devices
- Style
- 15 Degree
- Description - Invoice
- PS, INS, ANG BOX, 60A, 1 1/4" HUB,ALUM
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 29.300 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
- NAICS Code
- 3359326103
Width7.000 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75° C;Min. Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
ApplicationMetallic
Knockouts1 1/4" NPT Hub
Special FeaturesStandard Product
Temperature RangeLimited By Device
Engineering Drawing 1 Display TextMB602W AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Number Of OutletsAccepts 1-Device
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
ConstructionCast
SeriesBack Boxes and Adapters Series
BOX SIZE18.900x15.600x16.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585010748
Case Weight29.300 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
