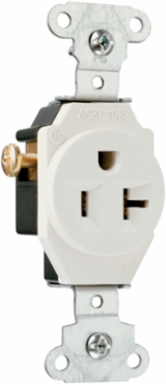

Pass & Seymour 5351LA 20A 125V Heavy Duty Single Receptacle, Side Wire, Light Almond, 1.08 Depth, 1.38 Width
- MPN: 5351LA
- UPC: 785007535136
- PPN: P-S-5351LA
CAD
$31.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Heavy Duty Single Receptacle, Side Wire, Light Almond, 1.08 Depth, 1.38 Width
Features
- Auto-ground clip assures positive ground.
- Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle.
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
- Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability.
- One-piece brass triple-wire power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.08 in
- Color
- Light Almond
- Product Line
- Pass & Seymour
- Standard
- UL 498
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 1.0
- Number of Poles
- Double Pole
- Connection Location
- Side Only
- Warranty Type
- 1-Year Limited Warranty
- Operating Temperature Min
- -40.0 °C
- Operating Temperature
- -40°-60°C
Width1.38 in
Country of OriginMexico
Amperage20.0 A
Voltage125.0 V
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-20R
Operating Temperature Max60.0 °C
FeaturesHeavy Duty Steel Mounting Strap
Special FeaturesAuto ground clip, back & side wire, zinc steel strap
