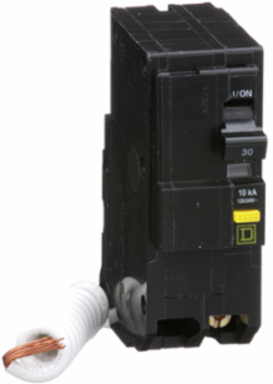

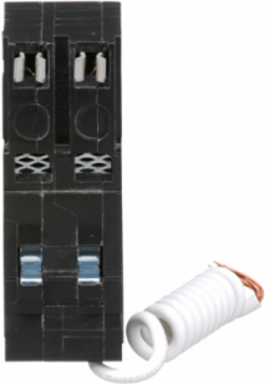

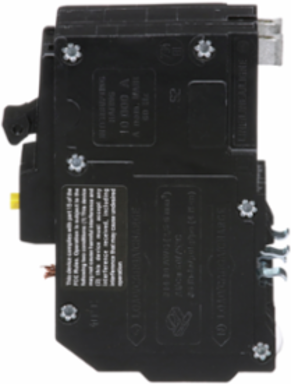

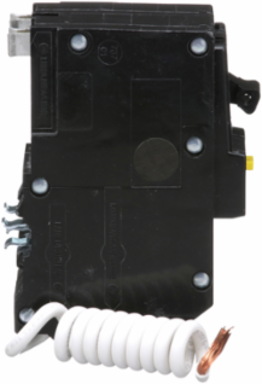

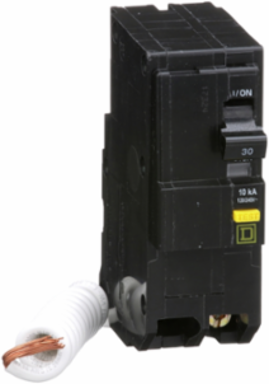

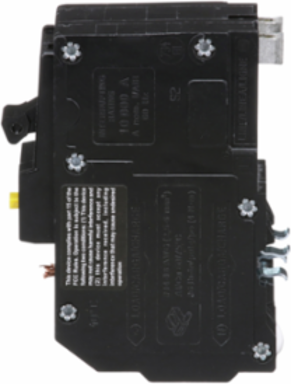

Square D QO230GFI Mini Circuit Breaker 30A 2-Pole 120/240V AC Ground Fault Class A 6mA
- MPN: QO230GFI
- UPC: 785901563006
- PPN: SCH-QO230GFI
CAD
$237.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 30A 2-Pole 120/240V AC Ground Fault Class A 6mA
Features
- Engineered with highly sensitive 5mA ground fault detection, this 2-pole 30-amp breaker immediately cuts power the moment it detects dangerous stray currents. This critical safety layer prevents life-threatening electrical shocks in wet environments, making it the perfect code-compliant solution for wiring residential hot tubs, spas, pool heaters, and heavy-duty outdoor RV receptacles.

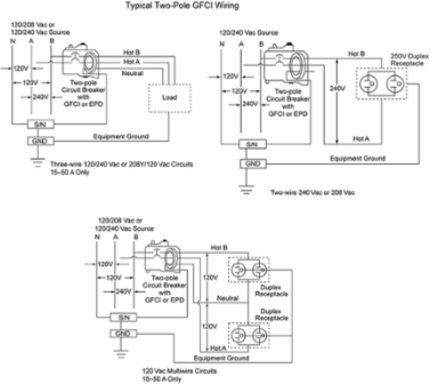

- Designed exclusively for standard Square D QO load centers, this double-pole breaker features a secure plug-on design and an included neutral pigtail for fast, reliable wiring. Sticking with OEM-approved Schneider Electric components eliminates the dangerous risk of loose busbar connections, ensuring a seamless installation that easily passes strict municipal electrical inspections.
- Featuring Square D's exclusive Visi-Trip visual indicator, a highly visible red flag drops into the display window the exact moment a circuit interruption occurs. This eliminates the frustrating guesswork of scanning a dark electrical panel, allowing homeowners and electricians to quickly isolate the tripped 240V circuit and safely restore power without manually testing every switch.
- Fully UL Listed and CSA certified for North American markets, this thermal-magnetic circuit breaker delivers a robust 10,000 Amp short-circuit current rating (SCCR) to protect your property's infrastructure from catastrophic overloads. Trusting rigorously factory-tested, National Electrical Code (NEC) compliant hardware safeguards your expensive appliances from thermal damage and ensures your property's liability insurance remains valid.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

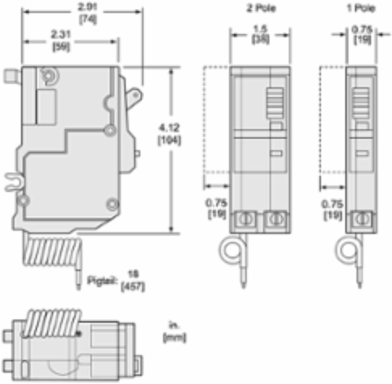

- Depth
- 74 mm
ComplianceTAA Compliant
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Tightening Torque
- 4-4 N.m, 4.6-4.6 N.m 4-20 mm² (12 AWG...4 AWG)
- [Ue] Rated Operational Voltage
- 120/240 V AC, 120 V AC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0887827957
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 3.3253688553
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 37.375
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Awg Gauge
- 14 AWG...8 AWG copper12 AWG...8 AWG aluminium
- Circuit Breaker Type
- ground fault protecting class A 6 mA
- Energy Efficiency Optimized
- False
- Number Of Poles
- 2P
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.4
- Total Lifecycle Carbon Footprint
- 41 kg CO2 eq.
- Pep Code
- ENVPEP2212005EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Width Nominal
- 38 mm
- Package Weight(Lbs)
- 426.376 g
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 455.05
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 5.7146
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 503.15
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 472.94
- Water Pollution (M3) Operational Energy Use [B6]
- 1842.6
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The Distribution Phase [A4]0.1097329328, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.002994325, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]37 kg CO2 eq., 37.375
Local Publishable Date2026-04-14
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2212005
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Circuit Breaker Applicationnot rated
Electrical Connectionpressure plate
Mounting Modeplug-in
Number Of Spaces Required2
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal105 mm
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]3173.9
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]37.375
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]472.94
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]30.218
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]30.218
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 40.9018789088
- Circularity Profile
- ENVEOLI2212005
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2212005EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Environmental DisclosureENVPEP2212005EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
ETIM
- ETIM 8
- EC000905
ETIM 9EC000905
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
